Husqvarna 2900 Type 1 (2008-07) Chain Saw

Model: 2900 Type 1 (2008-07)

Back To Assemblies

Save Part Not Listed?
product name

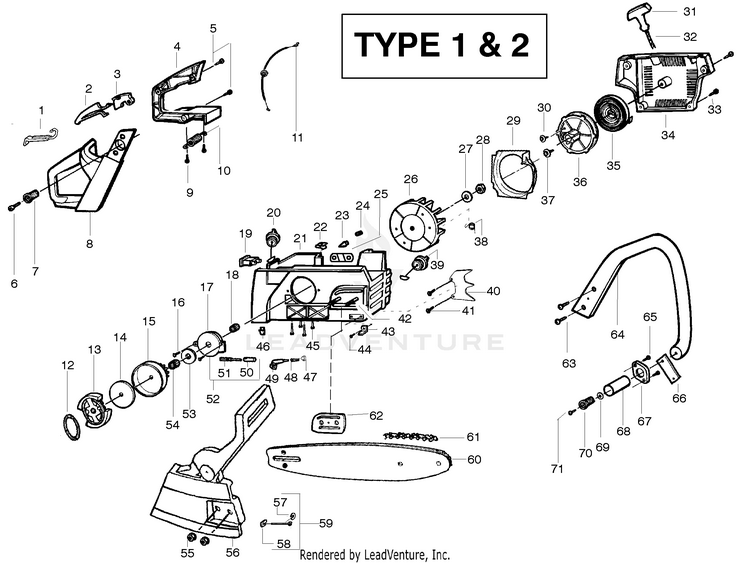

Starter - Type 1 & 2

...
...
1
Choke Lever HUS-530053443
...
2
Throttle Lockout HUS-530036098
...
3
Throttle Trigger HUS-530036097
...
4
Cover-Handle (kit) HUS-530071272
...
5
Screw HUS-530015957
...
6
Screw HUS-530015937
...
7
Spring - Isolator HUS-530038985
...
8
Cover-Handle (kit) HUS-530071272
...
9
Screw HUS-530015886
...
10
Isolator Spring HUS-530038986
...
11
Throttle Cable HUS-530038471
...
12
Assy. - Clutch HUS-530014949
...
13
Clutch Ass’y. HUS-530014949
...
14
Clutch Washer HUS-530015611
...
15
Kit - Clutch Drum & Bearing (Incl. 54) HUS-530069342
...
16
Screw HUS-530015896
...
17
PLUNGER & GEAR ASSY HUS-545036801
...
18
Oil Pump Worm HUS-530029833
...
19
Switch Kit HUS-530069572
...
20
Fuel Cap Ass’y. HUS-530010845
...
21
Chassis Ass’y. HUS-530037511
...
22
Speed Nut HUS-530015922
...
23
Check Valve HUS-530026119
...
24
Vent Plug HUS-530029868
...
25
Bar Stud Plate HUS-530036043
...
26
FLYWHEEL ASSY HUS-575635501
...
27
Washer HUS-530015127
...
28
Nut HUS-530016071
...
29
Baffle Plate HUS-530047667
...
30
Screw HUS-530016080
...
31
Handle-Starter HUS-530056402
...
32
Rope Kit HUS-530069232
...
33
Screw HUS-530015892
...
34
Assy Fan Hsg (Incl. 29) HUS-530047744
...
35
RETURN SPRING HUS-545008005
...
36
Kit - Starter Pulley HUS-530069313
...
37
Screw HUS-530015920
...
38
Spring - Starter Dog HUS-530023817
...
39
Assy-Oil Cap HUS-530057236
...
40
Assy. - Spike (Incl.41) HUS-530014381
...
41
Screw HUS-530015886
...
42
Bar Bolt HUS-530015877
...
43
Chain Catcher HUS-530029850
...
44
Screw HUS-530015906
...
45
Screw HUS-530016037
...
46
OIL HOSE HUS-545037101
...
47
Filter-Oil HUS-530056533
...
48
Filter-Oil HUS-530056533
...
49
Pickup-Oil HUS-545047801
...
50
PLUNGER & GEAR ASSY HUS-545036801
...
51
PLUNGER & GEAR ASSY HUS-545036801
...
52
PLUNGER & GEAR ASSY (Incl. 17, 50, & 51) HUS-545036801
...
53
Thrust Washer HUS-530015907
...
54
Clutch Bearing HUS-530032119
...
55
Bar Mounting Nut HUS-530015917
...
56
Assy-Chainbrake HUS-530054803
...
57
Retainer-Bar Adjust HUS-530038593
...
58
Bar Adjusting Pin HUS-530015826
...
59
Kit - Bar Adjust (Incl.57,58) HUS-530069611
...
60
Bar 16" HUS-952044324
...
60
Bar 18" HUS-952044325
...
60
Bar 20" HUS-952044326
...
61
Chain 16" HUS-952051301
...
61
Chain 18" HUS-952051313
...
61
Chain 20" HUS-952051310
...
62
Bar Plate HUS-530047855
...
63
Screw HUS-530015814
...
64
Handle HUS-530038327
...
65
Screw HUS-530015775
...
66
Front Strap HUS-530036113
...
67
Isolator Plate HUS-530036101
...
68
Spring Sleeve HUS-530036142
...
69
Washer HUS-530015123
...
70
Isolator Spring HUS-530038985
...
71
Screw HUS-530015984
