Husqvarna 288 (19911400001-19933600000) Chain Saw

Model: 288 (19911400001-19933600000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

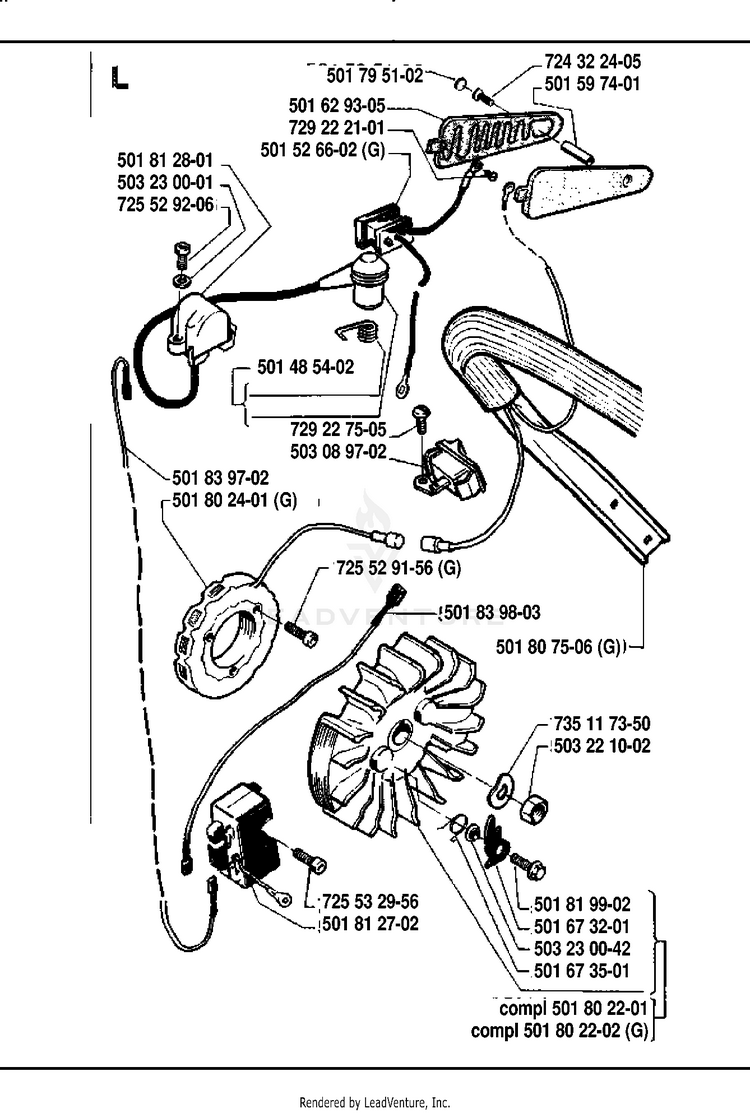

ELECTRICAL

...
...
725 52 92-06
SCREW MC6S 4X16 HUS-725529356
...
503 22 10-02
NUT M10X1 HUS-503221002
...
501 79 51-02
WASHER HUS-501795102
...
503 08 97-02
SWITCH ON/OFF HUS-503717901
...
501 81 28-01
IGNITION COIL HUS-501812801
...
501 48 54-02
SPARK PLUG CONN. KIT HUS-501485402
...
729 22 75-05
SCREW HUS-503212806
...
501 81 99-02
SCREW M5X14 HUS-501819901
...
501 67 35-01
SPRING HUS-501673501
...
724 32 24-05
SCREW 3X10 HUS-724322405
...
501 83 98-03
LEAD HUS-501839803
...
503 23 00-42
WASHER HUS-503230042
...
501 80 75-06
FRONT HANDLE G G HUS-501807506
...
501 80 22-01
Flywheel HUS-501802201
...
501 59 74-01
SPACER HUS-501597401
...
501 83 97-02
LEAD HUS-501839702
...
501 67 32-01
PAWL HUS-501673201
...
725 52 91-56
SCREW MC6S 4X12 G HUS-725529155
...
503 23 00-01
WASHER 4.2X9 HUS-503230001
...
501 80 22-02
FLYWHEEL ASY G HUS-504701602
...
501 81 27-02
ELECTRONIC BOX HUS-501812702
...
735 11 73-50
SPRING WASHER 10.5X18 HUS-735117350
...
501 80 24-01
GENERATOR G HUS-501802401
...
729 22 21-01
SCREW CSK B4X6 HUS-729222101
...
501 52 66-02
SWITCH HEATING G HUS-501526602
...
725 53 29-56
SCREW MC6S 5X16 HUS-725532955
...
501 62 93-05
HANDLE CIRCUIT HUS-501629305
...
...
...
...
...
