Husqvarna 288 (19911400001-19933600000) Chain Saw

Model: 288 (19911400001-19933600000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

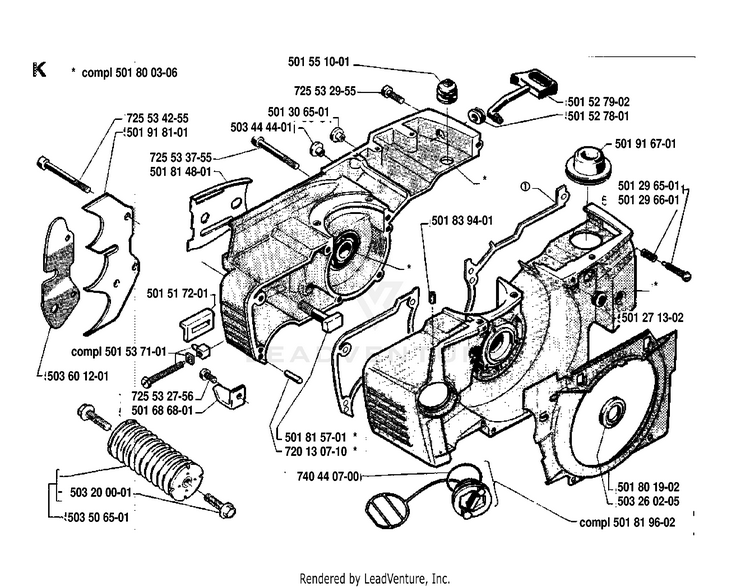

CRANKCASE

...
...
501 52 79-02
CHOKE CONTROL HUS-501527902
...
501 81 96-02
TANK CAP HUS-537215207
...
501 83 94-01
OIL TANK VENT HUS-501839401
...
501 91 67-01
BELLOWS HUS-501916701
...
503 20 00-01
SCREW M6SF 5X20 HUS-503200001
...
503 50 65-01
AV MOUNT HUS-503496201
...
501 81 48-01
PROTECTION PLATE HUS-501814801
...
501 30 65-01
Plug HUS-501306501
...
501 91 81-01
FELLING DOG HUS-501918101
...
725 53 42-55
SCREW MC6S 5X55 HUS-725534255
...
501 51 72-01
CHAIN GUIDE HUS-501517201
...
501 55 10-01
SEAL HUS-501551001
...
503 60 12-01
FELLING DOG HUS-503601201
...
501 80 03-06
CRANK CASE W/BEARING HUS-501800306
...
725 53 29-55
SCREW MC6S 5X16 HUS-725532955
...
501 27 13-02
GROMMET HUS-501271302
...
725 53 27-56
SCREW MC6S 5X12 HUS-725532755
...
501 52 78-01
BUSHING HUS-501527801
...
501 53 71-01
CHAIN TENSIONER HUS-501537101
...
503 26 02-05
SEALING RING HUS-503260205
...
501 68 68-01
CHAIN CATCHER HUS-501686801
...
725 53 37-55
SCREW MC6S 5X35 HUS-725533755
...
501 81 57-01
BOLT HUS-501815701
...
720 13 07-10
Pins HUS-720130752
...
503 44 44-01
BUSHING HUS-503723101
...
501 80 19-02
AIR CONDUCTOR HUS-501801902
...
740 44 07-00
O-RING HUS-740440700
...
501 29 66-01
SPRING HUS-501296601
...
501 29 65-01
SCREW HUS-501296501
...
...
...
...
...
