Husqvarna 288 (19911400001-19933600000) Chain Saw

Model: 288 (19911400001-19933600000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

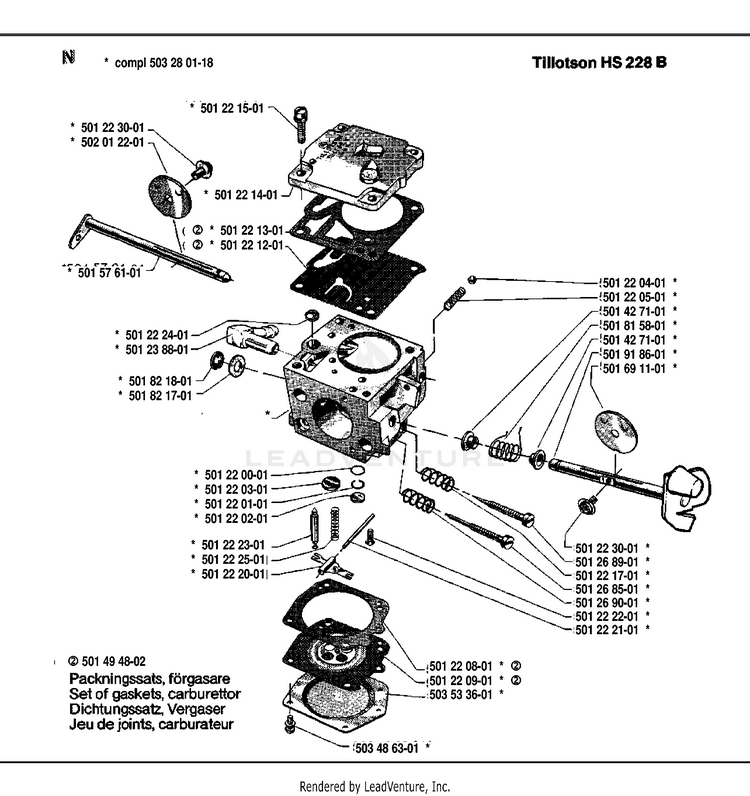

CARBURETOR DETAILS

...
...
501 22 13-01
GASKET, PUMP SIDE 501 49 48-02 SET OF GASKETS HUS-501221301
...
501 22 01-01
LOCKING RING HUS-501220101
...
503 28 01-18
CARBURETOR HUS-501355301
...
501 82 17-01
WASHER HUS-501821701
...
501 42 71-01
Bushing HUS-501427101
...
501 22 14-01
CAP HUS-501221401
...
501 22 30-01
SCREW HUS-503652701
...
501 22 09-01
METERING DIAPHRAGM 501 49 48-02 SET OF GASKETS HUS-501220901
...
501 23 88-01
NIPPLE HUS-503534001
...
503 48 63-01
COVER SCREW HUS-503486301
...
501 22 24-01
FILTER HUS-578004601
...
501 22 15-01
SCREW HUS-501221501
...
501 26 85-01
IDLE ADJ. SCREW HUS-501268501
...
501 22 23-01
NEEDLE HUS-501222301
...
501 22 25-01
SPRING HUS-501222501
...
501 22 20-01
LEVER HUS-501222001
...
501 26 89-01
NEEDLE H HUS-501268901
...
501 22 00-01
SCREEN HUS-501220001
...
502 01 22-01
CHOKE FLAP HUS-502012201
...
501 69 11-01
THROTTLE FLAP HUS-501691101
...
501 26 90-01
SPRING HUS-501269001
...
501 22 21-01
SHAFT HUS-501222101
...
503 53 36-01
COVER HUS-503533601
...
501 22 08-01
GASKET, METERING SIDE 501 49 48-02 SET OF GASKETS HUS-501220801
...
501 91 86-01
THROTTLE SHAFT HUS-501918601
...
501 22 03-01
Plug HUS-501220301
...
501 81 58-01
SPRING HUS-501815801
...
501 57 61-01
CHOKE SHAFT AND LEVER HUS-501576101
...
501 22 05-01
SPRING HUS-501220501
...
501 22 22-01
SCREW HUS-501222201
...
501 22 02-01
PLUG (TIL 179-60X) HUS-501220201
...
501 22 04-01
BALL HUS-501220401
...
501 22 12-01
FUEL PUMP DIAPHRAGM 501 49 48-02 SET OF GASKETS HUS-501221201
...
501 82 18-01
RETAINING RING HUS-501821801
...
501 22 17-01
SPRING HUS-501221701
...
...
...
...
...
