Husqvarna 288 (19911400001-19933600000) Chain Saw

Model: 288 (19911400001-19933600000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

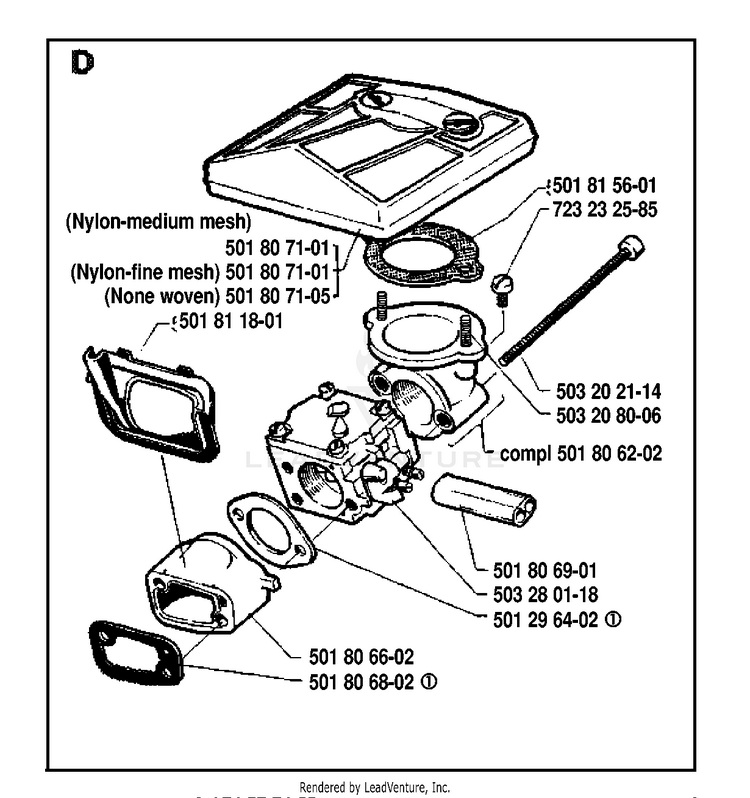

CARBURETOR & AIR FILTER

...
...
503 20 21-14
SCREW HUS-503202191
...
501 80 71-05
AIR FILTER - FELT NONE WOVEN HUS-501807105
...
723 23 25-85
SCREW MSCS 5X10 HUS-723232585
...
501 80 68-02
GASKET HUS-501806802
...
503 28 01-18
CARBURETOR HUS-501355301
...
501 81 56-01
GASKET HUS-501815601
...
501 80 71-01
AIR FILTER NYLON-FINE MESH HUS-501807101
...
501 80 66-02
SPACER HUS-501806602
...
501 80 71-01
AIR FILTER NYLON-MEDIUM MESH HUS-501807101
...
501 80 62-02
AIR FILTER ATTACHMENT HUS-501806202
...
503 20 80-06
STUD 5X22 HUS-503208006
...
501 29 64-02
GASKET HUS-501296402
...
501 81 18-01
SEALING COLLAR HUS-501811801
...
501 80 69-01
SLEEVE HUS-501806901
...
...
...
...
...
