Husqvarna 288 (19911400001-19933600000) Chain Saw

Model: 288 (19911400001-19933600000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

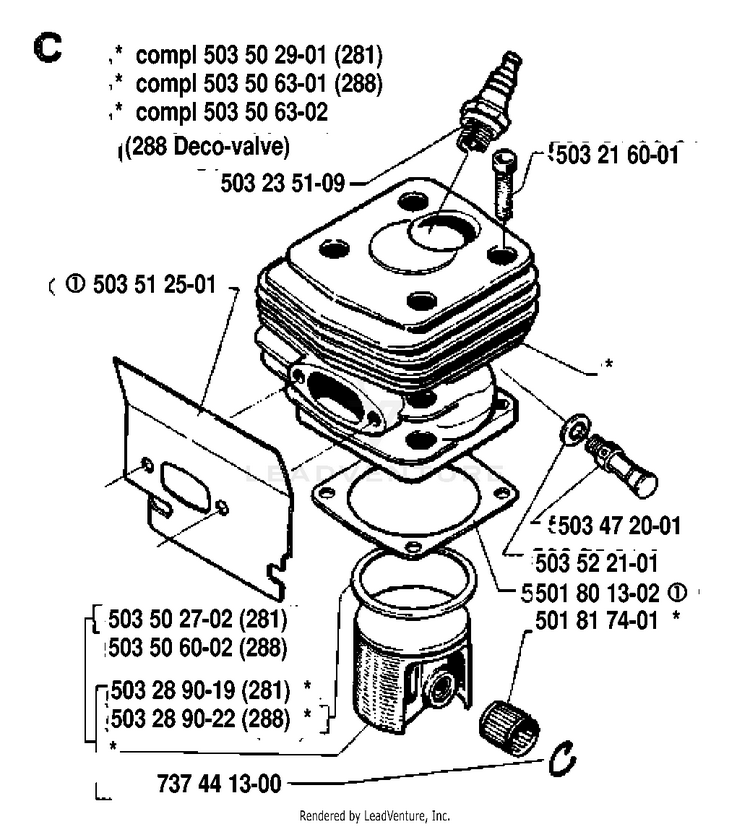

CYLINDER PISTON

...
...
503 50 63-01
CYLINDER ASSY 288 HUS-544223102
...
503 28 90-22
PISTON RING 288 HUS-544225101
...
501 81 74-01
SUPPORT BUSHING HUS-503256101
...
737 44 13-00
CLIP HUS-737441300
...
503 51 25-01
DEFLECTOR HUS-503512501
...
503 50 63-02
CYLINDER ASSY 288 DECO-VALVE HUS-544223102
...
501 80 13-02
GASKET HUS-501801302
...
503 50 60-02
PISTON ASSY 288 HUS-544224102
...
503 23 51-09
PLUG SPARK (RCJ6-Y) HUS-530030179
...
503 52 21-01
WASHER HUS-503522101
...
503 47 20-01
DECOMPRESSION VALVE HUS-503715301
...
503 28 90-19
PISTON RING 281 HUS-503289019
...
503 50 29-01
CYLINDER ASSY 281 HUS-544223002
...
503 50 27-02
PISTON 281 HUS-544224002
...
503 21 60-01
SCREW HUS-503216025
...
...
...
...
...
