product name

Husqvarna 288 (19911400001-19933600000) Chain Saw

Model: 288 (19911400001-19933600000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

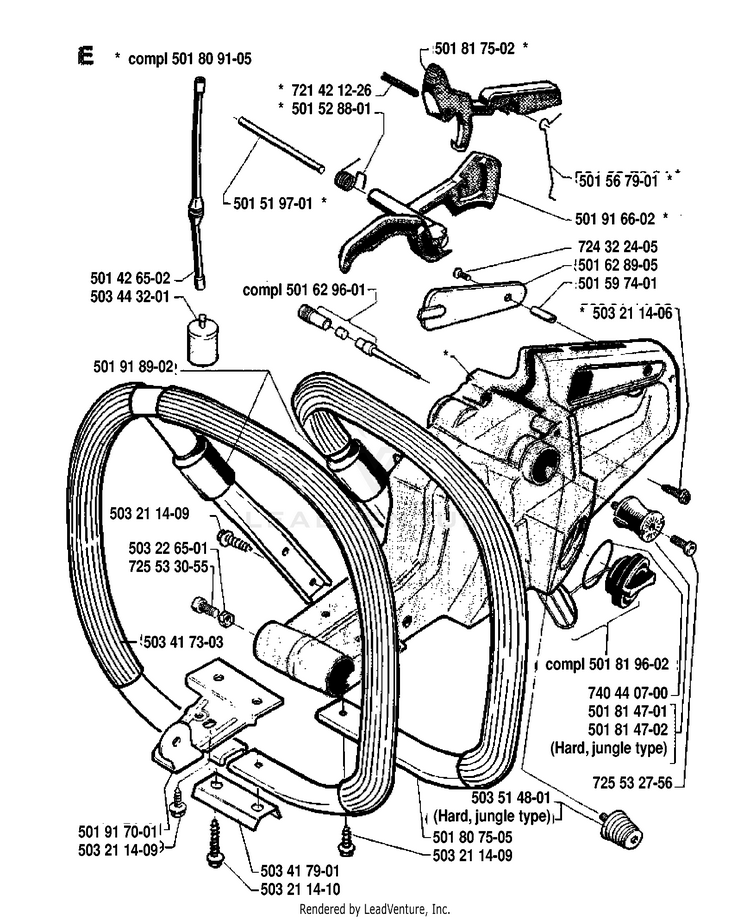

FUEL TANK & HANDLE

...
...
503 41 73-03
FRONT HANDLE WA HUS-503417303
...
721 42 12-26
SPRING PIN 3X24 HUS-721421226
...
501 91 70-01
BRACKET HUS-501917001
...
503 22 65-01
NUT HUS-503226504
...
501 62 89-05
HANDLE FILLER HUS-501628905
...
503 21 14-09
SCREW HUS-503210522
...
501 81 47-01
ANTIVIBE ELEMENT HUS-501814702
...
501 81 75-02
THROTTLE CATCH HUS-501817502
...
501 81 96-02
TANK CAP HUS-537215207
...
503 21 14-06
SCREW IHSCFT PW5.5X16 8.8 ZN/ HUS-503214972
...
501 51 97-01
SHAFT HUS-501519701
...
740 44 07-00
O-RING HUS-740440700
...
501 62 96-01
VALVE HUS-501629601
...
501 91 66-02
LEVER HUS-501916602
...
503 21 14-10
SCREW HUS-503210525
...
725 53 27-56
SCREW MC6S 5X12 HUS-725532755
...
501 56 79-01
SPRING HUS-501567901
...
503 44 32-01
KIT FUEL FILTER HUS-591375401
...
725 53 30-55
SCREW MC6S 5X18 HUS-725533055
...
724 32 24-05
SCREW 3X10 HUS-724322405
...
503 51 48-01
ABSORBER HARD, JUNGLE TYPE HUS-503514801
...
501 59 74-01
SPACER HUS-501597401
...
501 52 88-01
SPRING HUS-501528801
...
501 80 91-05
TANK UNIT CPL. HUS-501809105
...
501 80 75-05
FRONT HANDLE, STD HUS-501807505
...
503 41 79-01
PLATE HUS-503417901
...
501 42 65-02
FUEL HOSE HUS-501426502
...
501 81 47-02
ANTIVIBE ELEMENT HARD, JUNGLE TYPE HUS-501814702
...
501 91 89-02
SUPPORT HUS-501918902
...
...
...
...
...
