Husqvarna 288 (19911400001-19933600000) Chain Saw

Model: 288 (19911400001-19933600000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

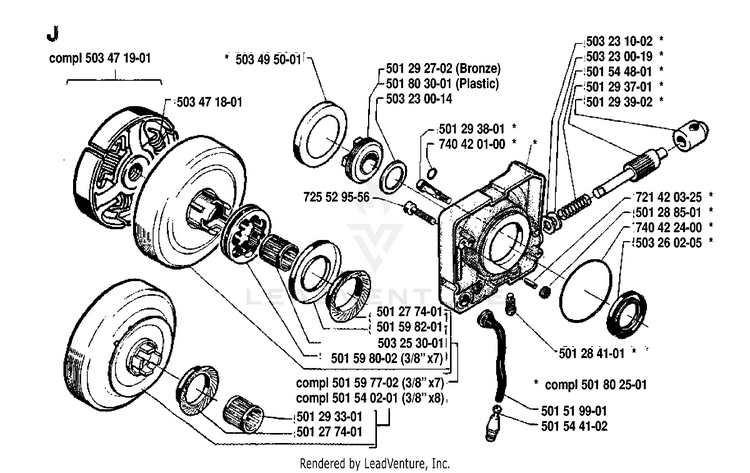

CLUTCH & OIL PUMP

...
...
503 26 02-05
SEALING RING HUS-503260205
...
501 29 38-01
Screw HUS-501293801
...
503 23 00-14
WASHER HUS-503230058
...
501 28 85-01
X-RING HUS-501288501
...
501 59 82-01
SEALING HUS-501598201
...
501 27 74-01
V-RING HUS-501277401
...
503 49 50-01
DUST PROTECTION HUS-503495001
...
721 42 03-25
SPRING PIN 3X6 HUS-721420325
...
501 59 80-02
68210/RIM 3/8 X7 HUS-640200214
...
501 29 39-02
Bushing HUS-501293902
...
503 47 19-01
CLUTCHES HUS-503701504
...
501 80 30-01
WORM WHEEL PLASTIC HUS-501803001
...
503 23 00-19
WASHER 6.6X11 HUS-503230019
...
501 29 33-01
NEEDLE BEARING HUS-501293301
...
503 25 30-01
SUPPORT BUSHING HUS-503253001
...
501 54 02-01
CLUTCH DRUM 3/8 X 8 SPUR 3/8 X8 HUS-501540201
...
501 29 37-01
Pump Plunger HUS-501293701
...
740 42 01-00
O-RING HUS-740420100
...
501 28 41-01
CONTROL SCREW HUS-501284101
...
501 29 27-02
DRIVE GEAR BRONZE BRONZE HUS-501292702
...
501 54 48-01
SPRING HUS-501544801
...
501 80 25-01
OIL PUMP HUS-503698101
...
501 59 77-02
28094X POWER MATE SPROCKET SYS 3/8 X7 HUS-640200093
...
501 51 99-01
OIL HOSE HUS-501519901
...
503 47 18-01
SPRING HUS-503471801
...
503 23 10-02
WASHER 6.6X11 HUS-503231002
...
740 42 24-00
O-RING HUS-740422400
...
501 54 41-02
OIL SCREEN HUS-501544102
...
725 52 95-56
SCREW HUS-503202620
...
...
...
...
...
