Husqvarna 288 (1990-01) Chain Saw

Model: 288 (1990-01)

Back To Assemblies

Save Part Not Listed?
product name

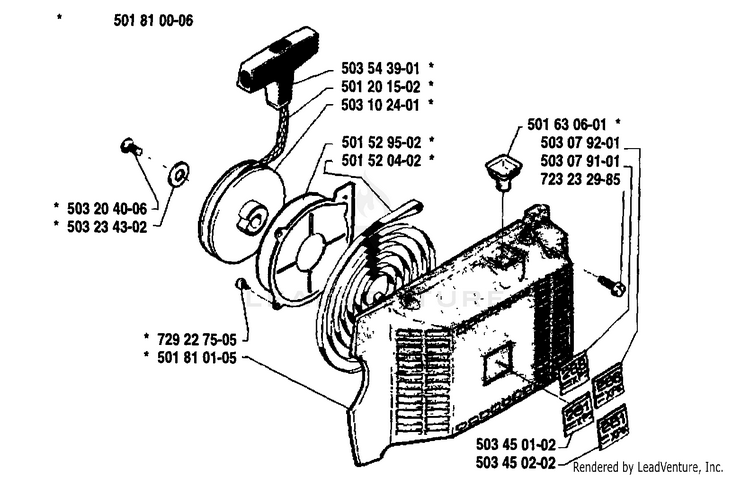

Starter Assembly

...
...
501810006
STARTER ASS'Y HUS-501810006
...
503204006
SCREW FS 5X12 HUS-503204006
...
503234302
WASHER HUS-503234302
...
729227505
SCREW HUS-503212806
...
501810105
STARTER/HOUSING HUS-501810105
...
503543901
STARTER HANDLE HUS-503543901
...
501201502
STARTER ROPE HUS-501201502
...
503102401
STARTER PULLEY HUS-503484801
...
501529502
WASHER HUS-501529502
...
501520402
RECOIL SPRING HUS-501520402
...
501630601
SLEEVE HUS-501630601
...
503079201
DECAL 288 XPG HUS-503079201
...
503079101
DECAL 288 XP NLA HUS-503079101
...
723232985
SCREW HUS-724132955
...
503450102
DECAL HUS-503450102
...
503450202
DECAL HUS-503450202
