product name

Husqvarna 288 (1990-01) Chain Saw

Model: 288 (1990-01)

Back To Assemblies

Save Part Not Listed?
product name

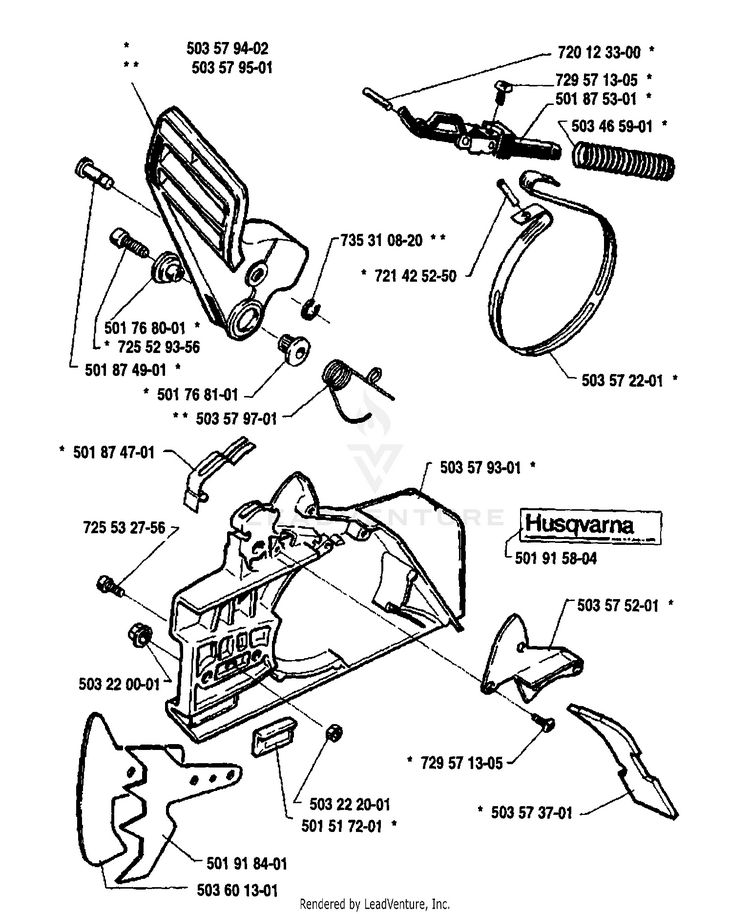

Chain Brake Assembly

...
...
503579402
CHAINBRAKE HUS-503746702
...
503579501
HANDGUARD HUS-503760801
...
735310820
E-RING 4 HUS-735310820
...
721425250
SPIRAL PIN 4X12 HUS-721425250
...
501768001
PIVOT SLEEVE R HUS-501768001
...
725529356
SCREW MC6S 4X16 HUS-725529356
...
501874901
PIVOT PIN HUS-503802701
...
501768101
PIVOT SLEEVE L HUS-501768101
...
503579701
SPRING HUS-503579701
...
501874701
SPRING HUS-501874701
...
725532756
SCREW MC6S 5X12 HUS-725532755
...
503220001
NUT M8 FLANGE HUS-503220001
...
503222001
LOCKNUT HUS-503222302
...
501517201
CHAIN GUIDE HUS-501517201
...
503579301
Clutch Cover HUS-503579301
...
729571305
SCREW HUS-503212810
...
501918401
FELLING DOG HUS-501918401
...
503601301
Felling Dog HUS-503601301
...
503573701
PROTECTOR HUS-503573701
...
503575201
Cover HUS-503575201
...
501915804
DECAL HUS-501915804
...
503572201
BRAKE BAND HUS-503572201
...
503465901
SPRING HUS-503465901
...
720123300
PIN 3X10 HUS-720123300
...
729571305
SCREW HUS-503212810
...
501875301
KNEE-JOINT HUS-501875301
