product name

Husqvarna 285 (1981-12) Chain Saw

Model: 285 (1981-12)

Back To Assemblies

Save Part Not Listed?
product name

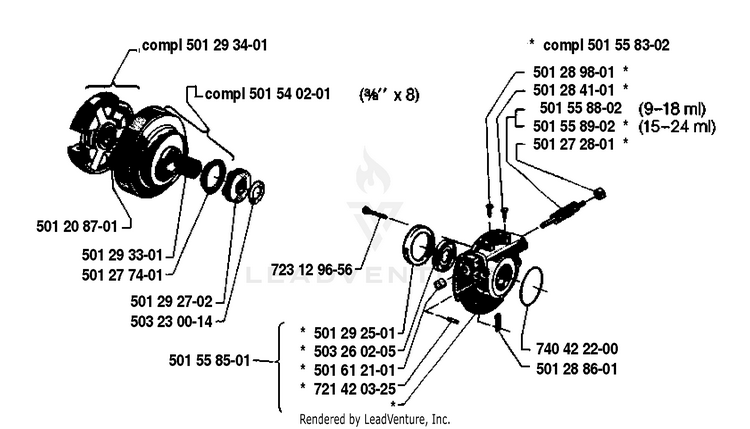

Oil Pump/Clutch

...
...
501293401
HUS-501293401
...
501540201
CLUTCH DRUM 3/8 X 8 SPUR 3/8" x 8 HUS-501540201
...
501208701
SPRING HUS-503560401
...
501293301
NEEDLE BEARING HUS-501293301
...
501277401
V-RING HUS-501277401
...
501292702
DRIVE GEAR BRONZE HUS-501292702
...
503230014
WASHER HUS-503230058
...
501558501
OIL PUMP HUS-501558302
...
723199656
HUS-723199656
...
501558302
OIL PUMP HUS-501558302
...
501289801
HUS-501289801
...
501284101
CONTROL SCREW HUS-501284101
...
501558802
PUMP PLUNGER 9-18 ml HUS-501558802
...
501558902
15-24 ml HUS-501558902
...
501272801
BUSHING HUS-501272801
...
740422200
O-RING HUS-740422200
...
501288601
X-RING HUS-501288601
...
501292501
DUST PROTECTION HUS-503495001
...
503260205
SEALING RING HUS-503260205
...
501612101
PLUG HUS-501612101
...
721420325
SPRING PIN 3X6 HUS-721420325
