Husqvarna 285 (1981-12) Chain Saw

Model: 285 (1981-12)

Back To Assemblies

Save Part Not Listed?
product name

Fuel Tank Complete

...
...
501568501
FUEL TANK CPL HUS-501568502
...
501572001
HUS-501572001
...
501601401
LEVER HUS-501601401
...
721421225
SPRING PIN 3X24 HUS-721421226
...
501567801
LOCK BUTTON NLA HUS-501567802
...
720128850
HUS-720128850
...
501614701
SPRING HUS-501614701
...
501565801
LEVER HUS-501565802
...
735614640
COMPRESSION RING 5 HUS-735614640
...
503240502
PIN 6X35 NLA HUS-503240502
...
501600101
RETURN SPRING HUS-501600101
...
501580601
THROTTLE ROD HUS-501580601
...
501426502
FUEL HOSE HUS-501426502
...
501551001
SEAL HUS-501551001
...
501822301
KIT FUEL FILTER HUS-591375401
...
501606801
CLAMP HUS-501606801
...
501696301
OIL HOSE HUS-503082701
...
501825801
OIL SCREEN HUS-503088501
...
501551101
SEAL HUS-501551101
...
501695001
HUS-501695001
...
501541201
HUS-501541201
...
501278201
WASHER HUS-501278201
...
501431401
TANK CAP HUS-501431402
...
501564502
OILTANK CAP HUS-501564504
...
501680801
PROTECTING CUP HUS-501680801
...
501269702
ANTIVIBE ELEMENT HUS-501269702
...
501599901
COLLAR HUS-501599901
...
725532755
SCREW MC6S 5X12 HUS-725532755

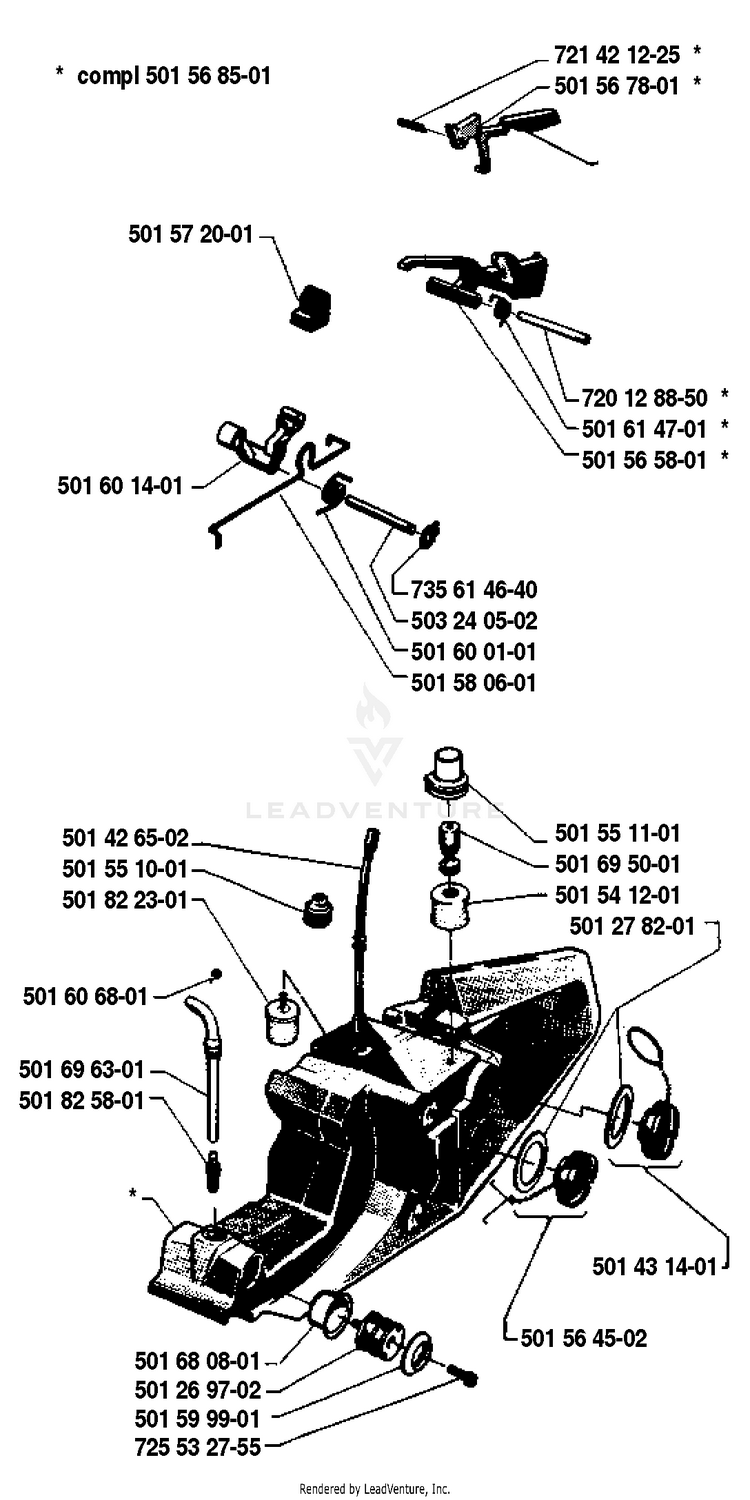

Schematic Image Zoomed
