Husqvarna 281 XP Chain Saw

Model: 281 XP

Back To Assemblies

Save Part Not Listed?
product name

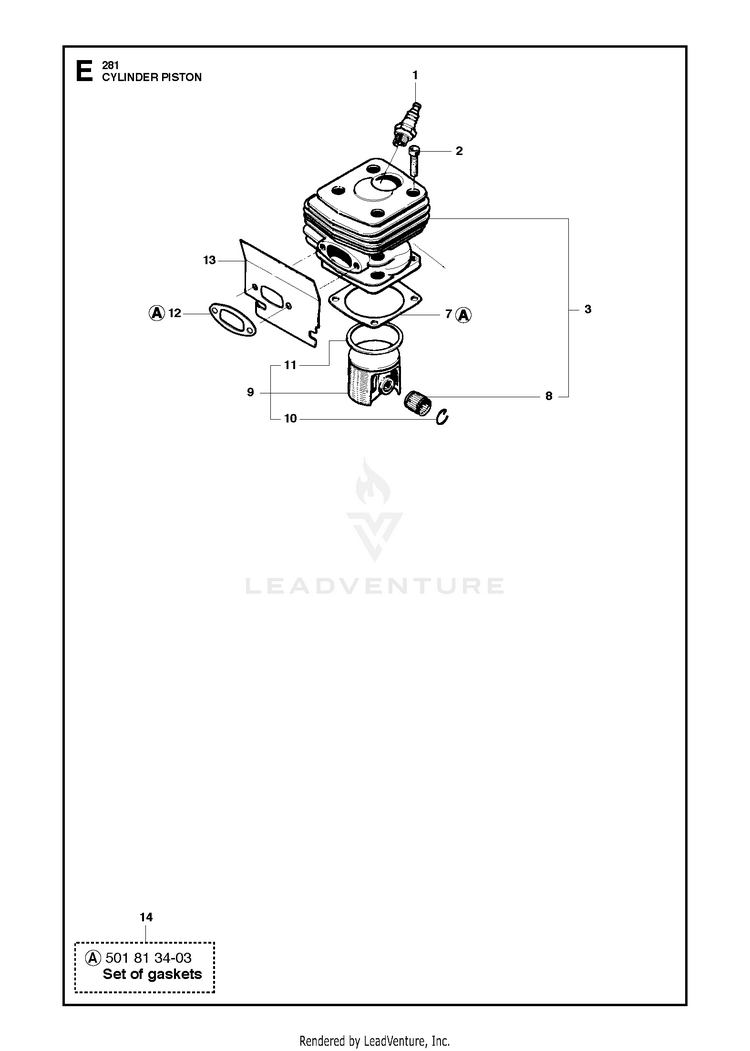

CYLINDER PISTON

...
...
13
DEFLECTOR HUS-503512501
...
9
PISTON HUS-544224002
...
10
CLIP HUS-737441300
...
7
GASKET HUS-501801302
...
12
GASKET HUS-501816003
...
14
GASKET KIT A = Set of gaskets HUS-501813403
...
1
SPARK PLUG M14X1.25 NGK BPMR7A RCJ 6 Y HUS-503235111
...
8
SUPPORT BUSHING HUS-503256101
...
2
SCREW HUS-503216025
...
3
CYLINDER ASSY HUS-544223002
...
11
PISTON RING DIA 52 MM HUS-544225001
