Husqvarna 281 XP Chain Saw

Model: 281 XP

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

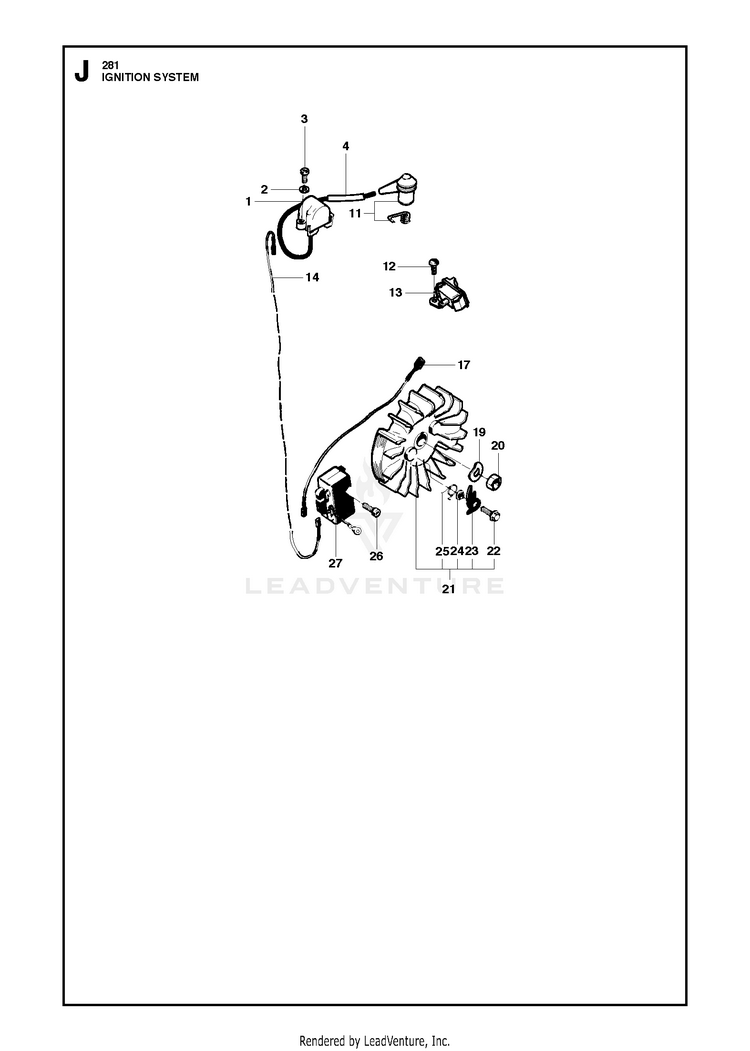

IGNITION SYSTEM

...
...
19
SPRING WASHER 10.5X18 HUS-735117350
...
11
SPARK PLUG CONN. KIT HUS-501485402
...
24
WASHER HUS-503230042
...
20
NUT M10X1 HUS-503221002
...
21
FLYWHEEL ASSY HUS-504701601
...
13
SWITCH ON/OFF HUS-503717901
...
26
SCREW MC6S 5X16 HUS-725532955
...
12
SCREW HUS-503212806
...
22
SCREW M5X14 HUS-501819901
...
23
PAWL HUS-501673201
...
14
LEAD HUS-501839702
...
3
SCREW MC6S 4X16 HUS-725529356
...
1
IGNITION COIL HUS-501812801
...
2
WASHER 4.2X9 HUS-503230001
...
17
LEAD HUS-501839803
...
25
SPRING HUS-501673501
...
4
Hose HUS-501527401
...
27
ELECTRONIC BOX HUS-501812702
