product name

Husqvarna 281 XP Chain Saw

Model: 281 XP

Back To Assemblies

Save Part Not Listed?
product name

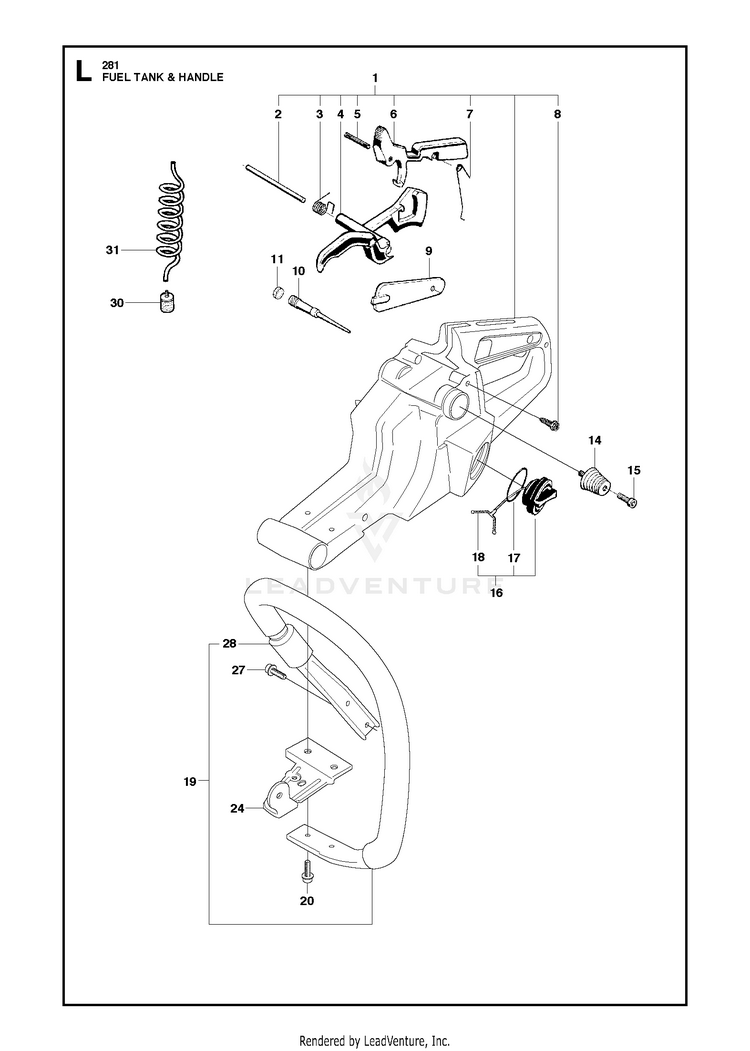

FUEL TANK & HANDLE

...
...
11
FILTER PLUG HUS-503600401
...
27
SCREW HUS-503210522
...
30
FUEL FILTER HUS-503517101
...
3
SPRING HUS-501528801
...
24
BRACKET HUS-501917001
...
14
ABSORBER HUS-503514801
...
9
HANDLE HUS-537033401
...
8
SCREW IHSCFT PW5.5X16 8.8 ZN/ HUS-503214972
...
5
SPRING PIN 3X24 HUS-721421226
...
17
SEALING HUS-589241101
...
28
SUPPORT HUS-501918902
...
6
THROTTLE CATCH HUS-501817502
...
15
SCREW MC6S 5X16 HUS-725532955
...
7
SPRING, THROTTLE LOCK HUS-503786301
...
2
SHAFT HUS-501519701
...
18
TANK LOCK HUS-503578901
...
31
FUEL HOSE HUS-581756205
...
1
TANK UNIT CPL. HUS-501809105
...
4
LEVER HUS-501916602
...
16
TANK CAP HUS-537215207
...
20
SCREW HUS-503210522
...
10
TANK VALVE HUS-501872501
...
19
FRONT HANDLE, STD HUS-501807505
