Husqvarna 281 XP Chain Saw

Model: 281 XP

Back To Assemblies

Save Part Not Listed?
product name

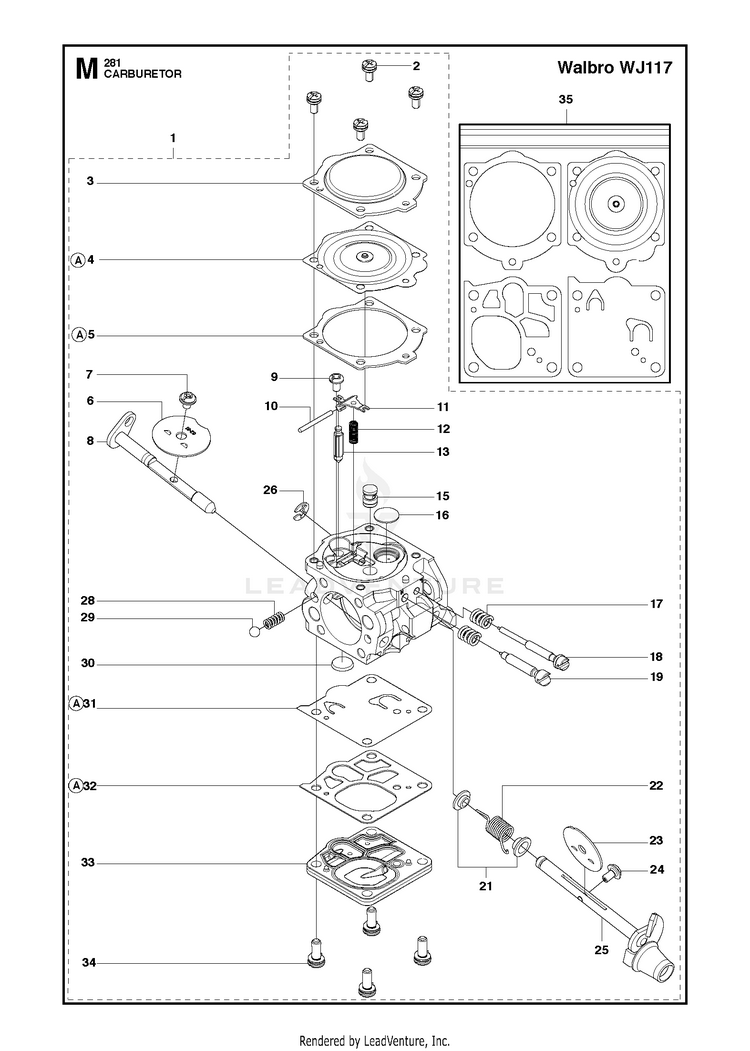

CARBURETOR

...
...
31
DIAPHRAM PUMP HUS-544897201
...
10
PIN HUS-505316731
...
16
WELCH PLUG HUS-503574101
...
2
SCREW HUS-503584601
...
34
SCREW W/ WASHER HUS-503117501
...
9
SCREW HUS-505316717
...
6
CHOKE FLAP HUS-505316707
...
22
NEEDS DESCRIPTION HUS-574871501
...
19
SCREW H HUS-503483601
...
5
GASKET HUS-501467501
...
32
GASKET HUS-503117201
...
18
NEEDLE L HUS-574871601
...
26
CLIPS HUS-502119801
...
13
INLET NEEDLE HUS-503563401
...
29
BALL HUS-503117101
...
7
SCREW HUS-544111501
...
30
FUEL INLET SCREEN HUS-501666101
...
4
MAIN DIAPHRAGM HUS-505316715
...
15
NEEDS DESCRIPTION HUS-574871201
...
17
NEEDLE SPRING HUS-530035293
...
33
COVER HUS-503595801
...
8
NEEDS DESCRIPTION HUS-574871101
...
11
LEVER HUS-505316734
...
24
SCREW HUS-544111501
...
21
BUSHING HUS-502103101
...
25
NEEDS DESCRIPTION HUS-574871001
...
3
DIAPHRAM COVER HUS-505316702
...
1
CARBURETOR Walbro WJ 117 HUS-501355301
...
35
GASKET KIT Set of Gaskets HUS-502529201
...
23
THROTTLE VALVE (W34-185) HUS-503116801
...
12
NEEDS DESCRIPTION HUS-574871301
...
28
SPRING HUS-503117701
