Husqvarna 281 XP Chain Saw

Model: 281 XP

Back To Assemblies

Save Part Not Listed?

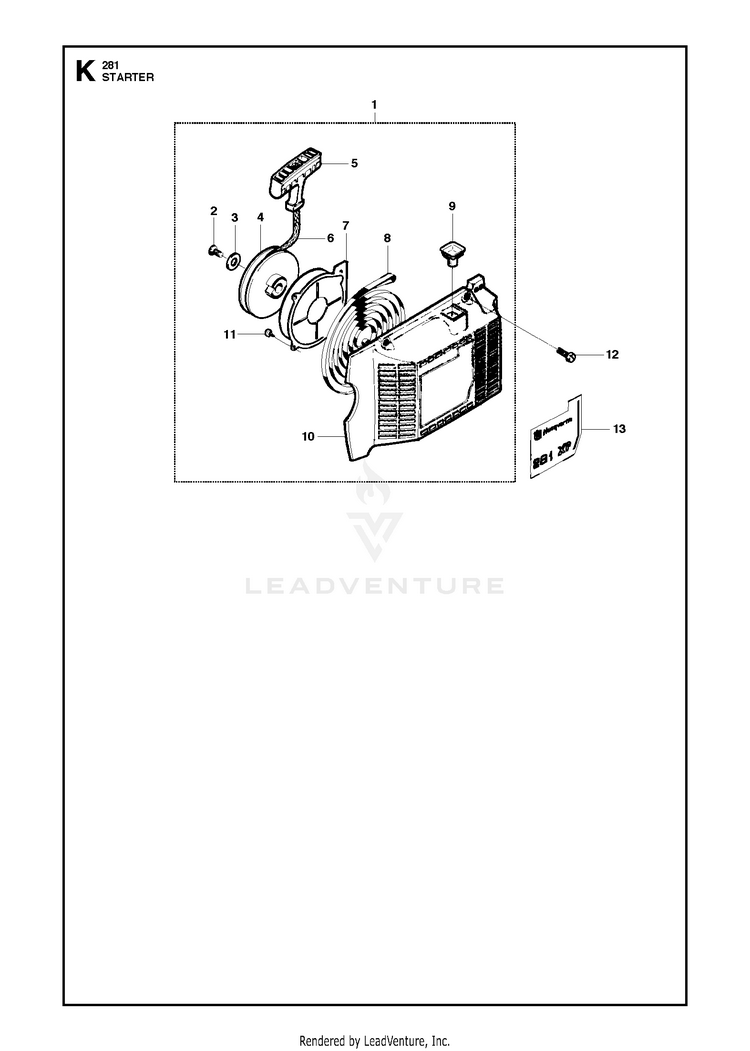

product name

STARTER

...
...
8
RECOIL SPRING HUS-501520402
...
9
SLEEVE HUS-501630601
...
11
SCREW HUS-503212806
...
10
STARTER/HOUSING HUS-501810105
...
7
WASHER HUS-501529502
...
1
STARTER ASS'Y HUS-501810006
...
2
SCREW HUS-503200312
...
4
STARTER PULLEY HUS-503484801
...
13
DECAL 281XP HUS-503709801
...
12
SCREW HUS-724132955
...
3
WASHER HUS-503234302
...
5
STARTER HANDLE HUS-503543901
...
6
STARTER ROPE HUS-501201502
