Husqvarna 281 (2000-02) Chain Saw

Model: 281 (2000-02)

Back To Assemblies

Save Part Not Listed?
product name

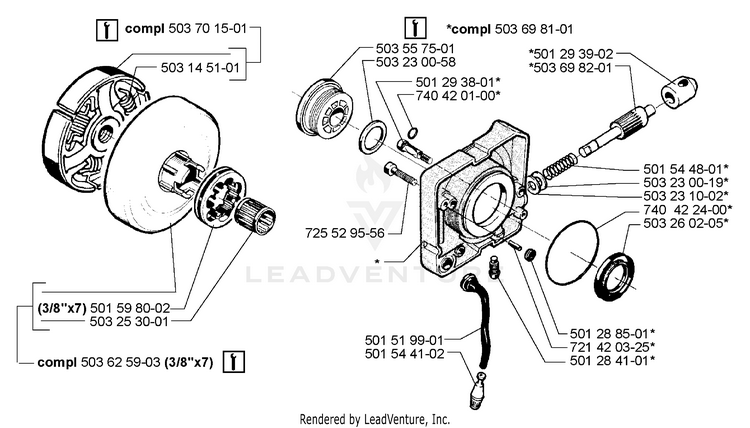

Oil Pump/Clutch

...
...
501284101
CONTROL SCREW HUS-501284101
...
501288501
X-RING HUS-501288501
...
501293801
Screw HUS-501293801
...
501293902
Bushing HUS-501293902
...
501519901
OIL HOSE HUS-501519901
...
501544102
OIL SCREEN HUS-501544102
...
501544801
SPRING HUS-501544801
...
501598002
68210/RIM HUS-640200214
...
503145101
CLUTCH SPRING HUS-503145101
...
503230019
WASHER 6.6X11 HUS-503230019
...
503230058
WASHER HUS-503230058
...
503231002
WASHER 6.6X11 HUS-503231002
...
503253001
SUPPORT BUSHING HUS-503253001
...
503260205
SEALING RING HUS-503260205
...
503557501
WORM GEAR HUS-503557501
...
503625903
CLUTCH DRUM HUS-503625903
...
503698101
OIL PUMP HUS-503698101
...
503698201
PUMP PISTON HUS-503698201
...
503701501
CLUTCHES HUS-503701504
...
721420325
SPRING PIN 3X6 HUS-721420325
...
725529556
SCREW HUS-503202620
...
737441300
CLIP HUS-737441300
...
740420100
O-RING HUS-740420100
...
740422400
O-RING HUS-740422400
