Husqvarna 281 (1988-01) Chain Saw

Model: 281 (1988-01)

Back To Assemblies

Save Part Not Listed?
product name

Chain Brake Assembly

...
...
501808008
CHAINBRAKE HUS-503746702
...
501808009
HUS-501808009
...
501611701
HUS-501611701
...
501823201
HUS-501823201
...
501480901
SPRING HUS-501480901
...
721425250
SPIRAL PIN 4X12 HUS-721425250
...
501831001
HUS-501831001
...
501824101
HUS-501824101
...
501853910
HUS-501853910
...
722142401
HUS-722142401
...
503151201
BRAKE SPRING HUS-503151201
...
501768701
HUS-501768701
...
721425300
HUS-721425300
...
501813601
DUST GUARD NLA HUS-501813601
...
501813601
DUST GUARD NLA HUS-501813601
...
501830201
HUS-501830201
...
725529356
SCREW MC6S 4X16 HUS-725529356
...
501824301
PIVOT SLEEVE NLA HUS-501824301
...
501808601
HUS-501808601
...
501824401
HUS-501824401
...
501808102
HUS-501808102
...
501808104
HUS-501808104
...
503220001
NUT M8 FLANGE HUS-503220001
...
501517201
CHAIN GUIDE HUS-501517201

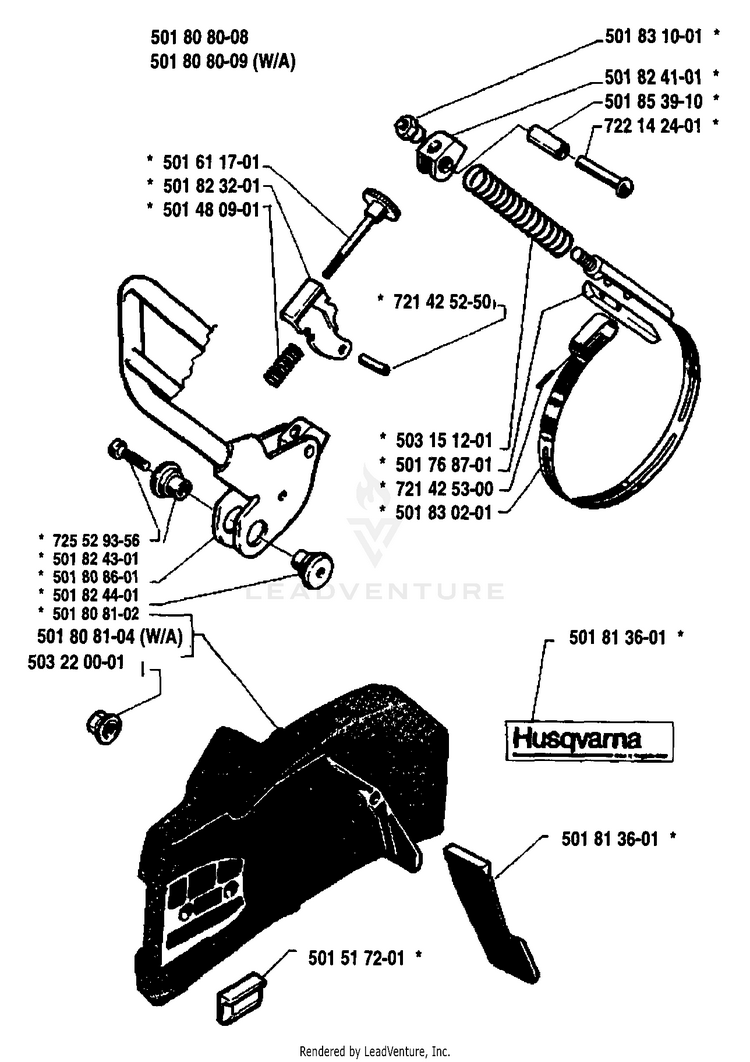

Schematic Image Zoomed
