Husqvarna 281 (1988-01) Chain Saw

Model: 281 (1988-01)

Back To Assemblies

Save Part Not Listed?
product name

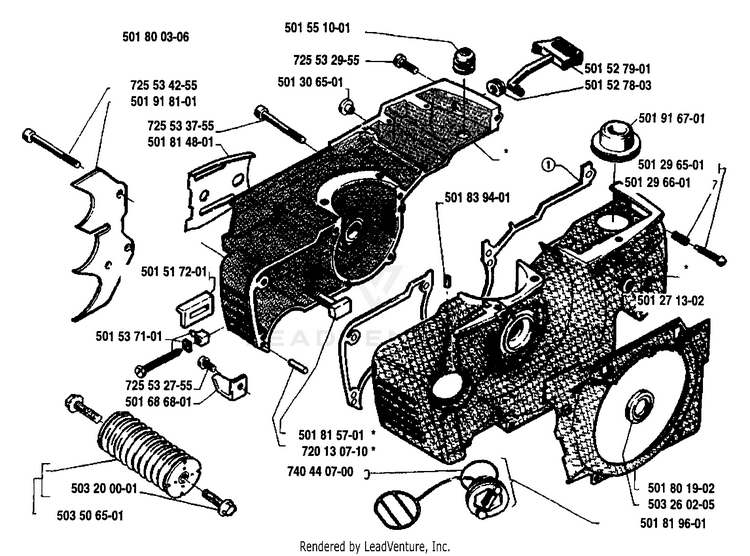

Crankcase Assembly

...
...
501800306
CRANK CASE W/BEARING HUS-501800306
...
725534255
SCREW MC6S 5X55 HUS-725534255
...
501918101
FELLING DOG HUS-501918101
...
725533755
SCREW MC6S 5X35 HUS-725533755
...
501814801
PROTECTION PLATE HUS-501814801
...
501551001
SEAL HUS-501551001
...
725532955
SCREW MC6S 5X16 HUS-725532955
...
501306501
Plug HUS-501306501
...
501517201
CHAIN GUIDE HUS-501517201
...
501537101
CHAIN TENSIONER HUS-501537101
...
501527901
CHOKE CONTROL HUS-501527902
...
501527803
HUS-501527803
...
501916701
BELLOWS HUS-501916701
...
501296501
SCREW HUS-501296501
...
501296601
SPRING HUS-501296601
...
501271302
GROMMET HUS-501271302
...
501839401
OIL TANK VENT HUS-501839401
...
501801902
AIR CONDUCTOR HUS-501801902
...
503260205
SEALING RING HUS-503260205
...
501819601
TANK CAP HUS-537215207
...
501815701
BOLT HUS-501815701
...
721130710
HUS-721130710
...
740440700
O-RING HUS-740440700
...
503506501
AV MOUNT HUS-503496201
...
503200001
SCREW M6SF 5X20 HUS-503200001
...
501686801
CHAIN CATCHER HUS-501686801
...
725532755
SCREW MC6S 5X12 HUS-725532755
