Husqvarna 2748 GLS - 96043007800 (2008-12) Riding Tractor

Model: 2748 GLS - 96043007800 (2008-12)

Back To Assemblies

Save Part Not Listed?
product name

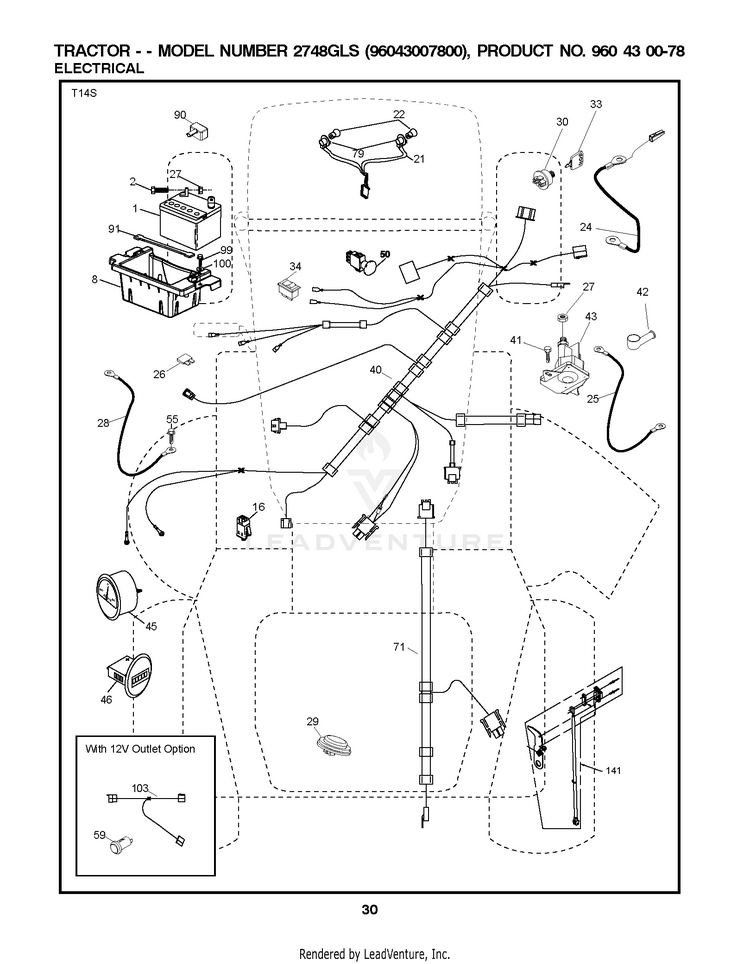

ELECTRICAL

...
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
40
HARNESS IGN. DASH HUS-532402167
...
103
HARNESS.PIGTAIL.12V.OUTLET. HUS-532421747
...
43
Solenoids HUS-582042802
...
46
HOUR METER HUS-529910701
...
99
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
41
Screws HUS-596437001
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
28
CABLE GROUND 6 GA 21" 90T BLK HUS-532145491
...
91
STRAP.BATTERY.MOUNT.FRONT(2 2) HUS-532190270
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
29
SWITCH.SEAT.DELTA.OPC. HUS-532401545
...
79
BULB HOLDER ASM. HUS-532175242
...
71
HARNESS-CHASSIS SUB HUS-532194276
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
141
KIT.G700/G730.ROS 71750 HUS-532421225
...
45
AMMETER HUS-529910801
...
100
Washers HUS-596135301
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
22
LIGHTBULB HUS-532004152
...
21
HARNESS ASSY LIGHT HUS-532183759
...
59
Outlets HUS-596941001
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
90
COVER.TERMINAL.BATTERY HUS-532400724
...
42
COVER.TERMINAL.RED HUS-532154336
...
26
FUSE 20AMP HUS-532175158
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
25
CABLE.STARTER.8GA.17.5 HUS-585555501
...
34
SWITCH LT HUS-532110712
...
24
CABLE.FRBATT.W/WIRE.8GA.8 HUS-585555601
...
8
TRAY.ASM.BATTERY.FRT.TEX.CARB HUS-532414126
