Husqvarna 272K (1991-09) Power Cutter

Model: 272K (1991-09)

Back To Assemblies

Save Part Not Listed?
product name

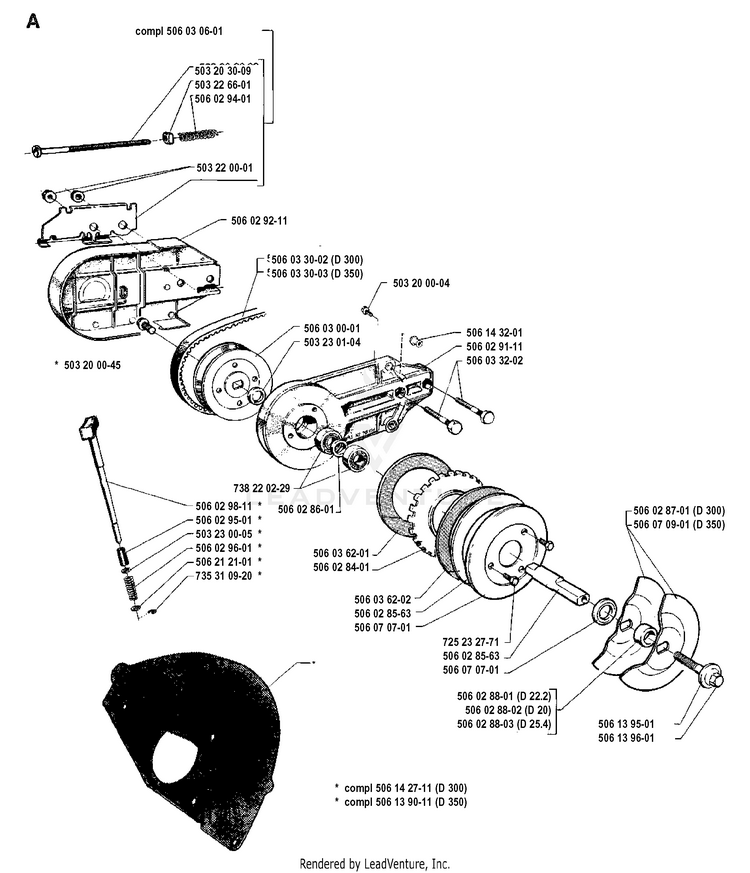

CUTTING ARM & BLADE GUARD

...
...
506 02 88-02
BUSHING D 20 HUS-506379620
...
506 03 62-02
SPACER HUS-506036202
...
506 02 86-01
SPACER HUS-506028601
...
503 23 00-05
WASHER 6.5X11 HUS-503230005
...
503 22 66-01
NUT HUS-503226601
...
506 02 98-11
CONTROL KNOB HUS-506029811
...
506 03 30-02
V-BELT/HEAVY DUTY-12" D 300 HUS-531030351
...
506 13 95-01
WASHER HUS-506139511
...
506 02 84-01
WASHER HUS-506028401
...
506 13 90-11
GUARD D 350 HUS-506139011
...
506 07 07-01
FLANGE HUS-506070701
...
506 21 21-01
WASHER HUS-506212101
...
506 02 85-63
SHAFT HUS-506298363
...
506 03 32-02
SCREW HUS-506033202
...
506 02 96-01
SPRING HUS-506029601
...
725 23 27-71
SCREW ISO 4014 M6X12 8.8 ZPB HUS-531119208
...
506 02 88-03
BUSHING D 25.4 HUS-578398201
...
506 03 06-01
BELT TENSIONER ASSY HUS-506030603
...
506 03 30-03
V-BELT/HEAVY DUTY-14" D 350 HUS-531030352
...
506 02 87-01
WASHER D 300 HUS-506028701
...
735 31 09-20
E-RING 5 HUS-735310920
...
506 02 92-11
GUARD HUS-506029211
...
506 02 95-01
HOSE HUS-506029501
...
506 03 62-01
SPACER HUS-506036201
...
506 14 27-11
GUARD D 300 HUS-506138109
...
506 02 91-11
BEARING HOUSING HUS-506029111
...
503 20 00-45
SCREW HUS-503200045
...
503 22 00-01
NUT M8 FLANGE HUS-503220001
...
506 03 00-01
PULLEY HUS-506030001
...
506 07 09-01
FLANGE WASHER D 350 HUS-506070903
...
506 02 94-01
SPRING HUS-506219501
...
738 22 02-29
BALL BEARING HUS-503252101
...
503 20 00-04
SCREW M6SF 5X16 HUS-503200004
...
506 13 96-01
SCREW HUS-581855201
...
503 20 30-09
HUS-503203009
...
506 02 88-01
BUSHING D 22.2 HUS-506379622
...
503 23 01-04
WASHER 15X21 HUS-503230104
...
506 14 32-01
CATCH HUS-506143201
