Husqvarna 272 K (1997-01) Power Cutter

Model: 272 K (1997-01)

Back To Assemblies

Save Part Not Listed?
product name

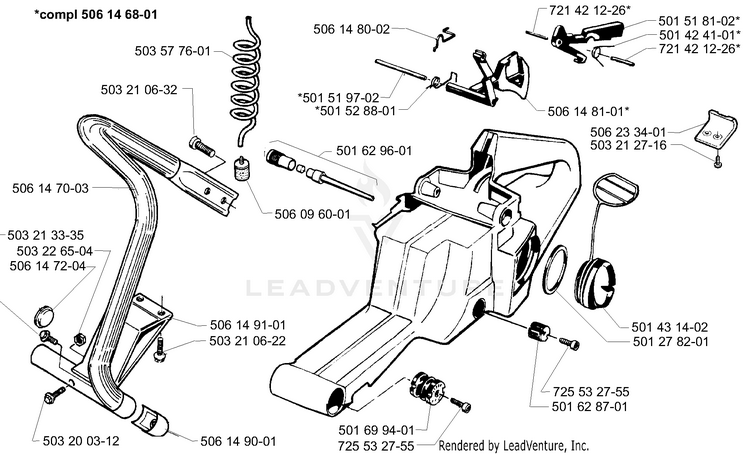

Tank Assembly

...
...
506146801
TANK W/VENT WIRE HUS-506146801
...
503577601
FUEL HOSE HUS-581756205
...
503210632
SCREW HUS-503210632
...
506147003
HANDLE HUS-506147003
...
503213335
SCREW HUS-503213335
...
503226504
NUT HUS-503226504
...
506147204
HUS-506147204
...
506149101
SUPPORT HUS-506149101
...
503210622
SCREW HUS-503210622
...
506148002
THROTTLE ROD HUS-506148002
...
501519702
SHAFT HUS-501519702
...
501528801
SPRING HUS-501528801
...
501629601
VALVE HUS-501629601
...
506096001
Filters HUS-598836601
...
721421226
SPRING PIN 3X24 HUS-721421226
...
501518102
THROTTLE CATCH HUS-501518102
...
501424101
SPRING HUS-501424101
...
721421226
SPRING PIN 3X24 HUS-721421226
...
506148101
LEVER HUS-506148101
...
506233401
GUARD ** HUS-506233401
...
503212716
NEEDS DESCRIPTION HUS-586505201
...
501431402
TANK CAP HUS-501431402
...
501278201
WASHER HUS-501278201
...
725532755
SCREW MC6S 5X12 HUS-725532755
...
501628901
HANDLE FILLER HUS-501628905
...
506149001
SUPPORT HUS-506149001
...
503200312
SCREW HUS-503200312
...
501699401
ANTIVIBE ELEMENT HUS-501699401
