Husqvarna 272 K (1997-01) Power Cutter

Model: 272 K (1997-01)

Back To Assemblies

Save Part Not Listed?
product name

Gear Assembly

...
...
503203009
HUS-503203009
...
503226601
NUT HUS-503226601
...
506219501
SPRING HUS-506219501
...
503220001
NUT M8 FLANGE HUS-503220001
...
506029211
GUARD HUS-506029211
...
506033012
V-BELT/HEAVY DUTY-12" HUS-531030351
...
506033023
V-BELT/HEAVY DUTY-14" HUS-531030352
...
506030001
PULLEY HUS-506030001
...
503230104
WASHER 15X21 HUS-503230104
...
503200045
SCREW HUS-503200045
...
738220229
BALL BEARING HUS-503252101
...
506028601
SPACER HUS-506028601
...
506036201
SPACER HUS-506036201
...
506028401
WASHER HUS-506028401
...
506036202
SPACER HUS-506036202
...
506036204
SPACER HUS-506036204
...
506034501
WASHER HUS-506034501
...
725532755
SCREW MC6S 5X12 HUS-725532755
...
505028563
HUS-505028563
...
506070701
FLANGE HUS-506070701
...
506039522
BUSHING HUS-506379622
...
506039520
BUSHING HUS-506379620
...
506039525
BUSHING HUS-578398201
...
506028830
BUSHING-30MM HUS-506028830
...
506029811
CONTROL KNOB HUS-506029811
...
506029501
HOSE HUS-506029501
...
503230005
WASHER 6.5X11 HUS-503230005
...
506029601
SPRING HUS-506029601
...
506212101
WASHER HUS-506212101
...
735310920
E-RING 5 HUS-735310920
...
506138109
GUARD HUS-506138109
...
506138209
GUARD HUS-506139011
...
506028701
WASHER HUS-506028701
...
506070901
FLANGE WASHER HUS-506070903
...
506139501
WASHER HUS-506139511
...
506139601
SCREW HUS-581855201
...
506030802
HUS-506030802
...
503200036
SCREW HUS-503200036
...
506143201
CATCH HUS-506143201
...
506029111
BEARING HOUSING HUS-506029111
...
506033202
SCREW HUS-506033202

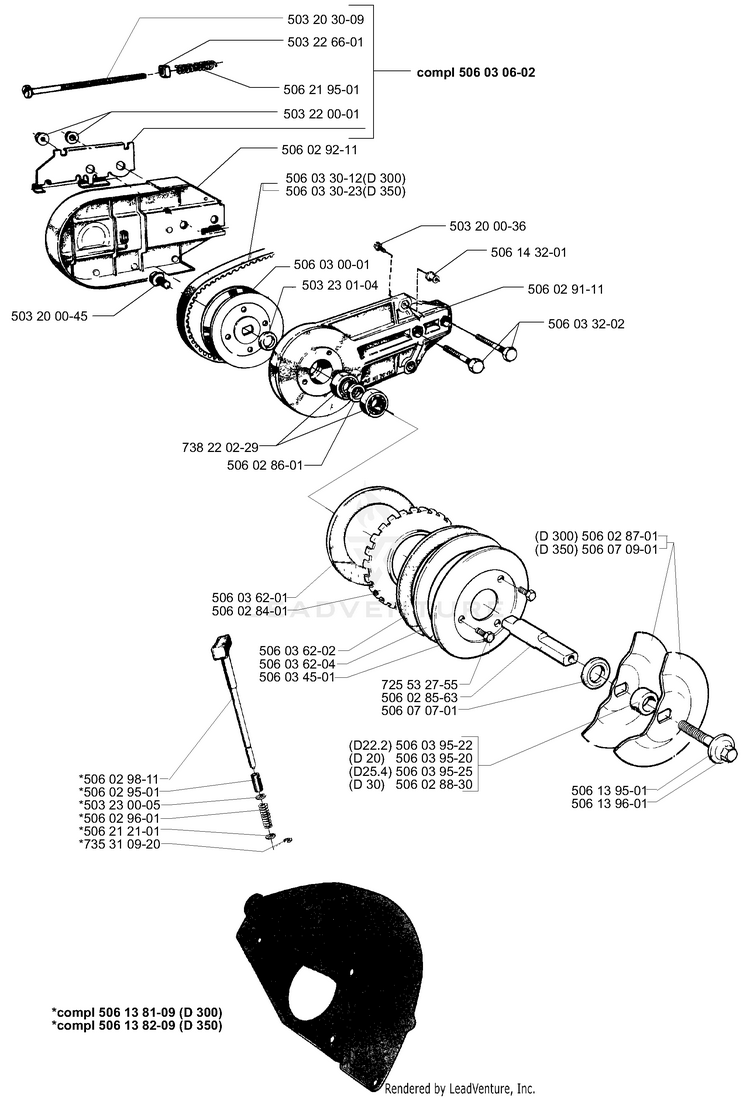

Schematic Image Zoomed
