Husqvarna 271491 (2002) Tractor

Model: 271491 (2002)

Back To Assemblies

Save Part Not Listed?
product name

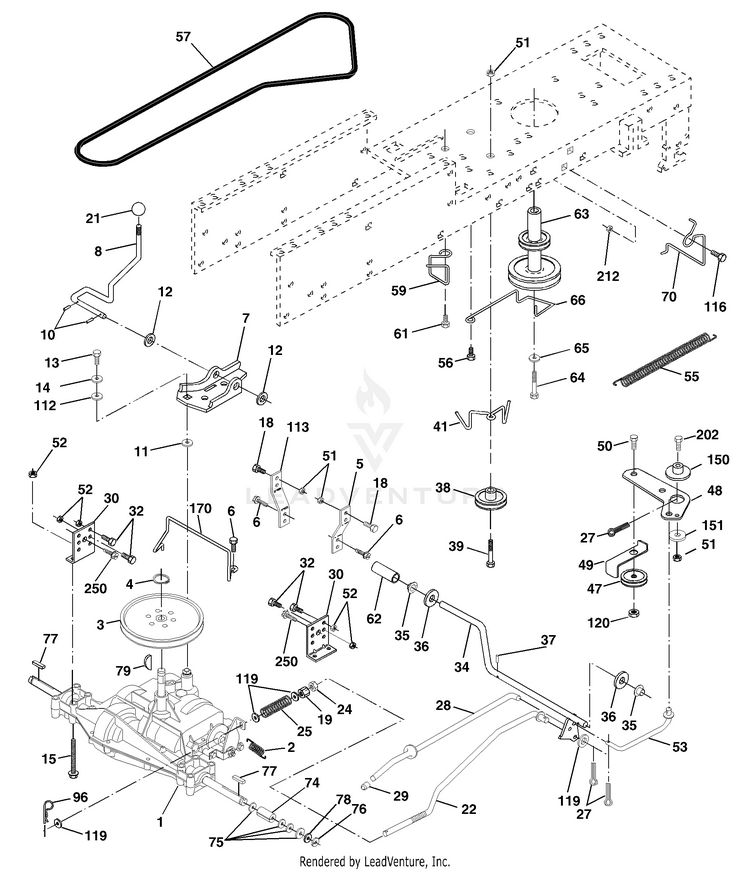

Ground Drive

...
...
2
Spring Return Brake T/a Zinc HUS-146682
...
3
Pulley Transaxle 18/20" tires HUS-123666X
...
4
Ring Retainer # 5100-62 HUS-12000028
...
5
Strap Torque 30 Degrees HUS-121520X
...
6
Screw 5/16-18 x 3/4 HUS-17060512
...
7
Bracket Saddle Shift T/a HUS-162240
...
8
Rod Shf Sdl LY/YT Str Blk HUS-131679
...
10
Pin Cotter 1/8 x 1 Cad HUS-76020416
...
11
Washer Plate 388 Sq Hole HUS-105701X
...
12
Washer 15/32 x 3/4 x 16ga HUS-19151216
...
13
Bolt 1/4-28unf Gr8 W/Patch HUS-74550412
...
14
Washer Lock Hvy Helical 1/4 HUS-10040400
...
15
Bolt Hex Flghd 5/16-18 x Gr. 5 HUS-74490544
...
18
Bolt Fin Hex 3/8-16 UNC x 1 Gr. 5 HUS-74780616
...
19
Nut Lock Hex W/Ins. 3/8-16 Unc HUS-73800600
...
21
Knob Rd 1/2-13 Plstc Thds HUS-106933X
...
22
Rod Brake Blk Zinc 26 840 HUS-130804
...
24
Nut Hex Jam 3/8-16 Unc HUS-73350600
...
25
Spring Rod Brake 2 00 Zinc HUS-106888X
...
27
Pin Cotter 1/8 x 3/4 Cad HUS-76020412
...
28
Rod Brake Parking Lt/Yt HUS-175765
...
29
Cap Brake Parking HUS-71673
...
30
Bracket Mtg Transaxle HUS-174973
...
32
Bolt Hex Hd 5/16-18unc x 3/4 HUS-74760512
...
34
Shaft Asm Pedal Foot Nibbed HUS-175578
...
35
Bearing Nylon Blk 629 Id HUS-120183X
...
36
Washer 21/32 x 1 x 16 Ga HUS-19211616
...
37
Pin Roll 3/16 x 1" HUS-1572H
...
38
Pulley Composite Flat HUS-179114
...
39
Bolt Fin Hex 3/8-16 UNC x 3 Gr. 5 HUS-74760648
...
41
Keeper Belt Idler HUS-175556
...
47
Pulley Idler V Groove Plastic HUS-127783
...
48
Bellcrank Asm. Clutch HUS-154407
...
49
Retainer Belt Style Spring HUS-123205X
...
50
Bolt Hex Hd 3/8-16unc x1-1/2 HUS-74760624
...
51
Nut Crownlock 3/8-16 UNC HUS-73680600
...
52
Nut Crown Lock 5/16-18 HUS-73680500
...
53
Link Clutch 7 66 HUS-105710X
...
55
Spring Return Clutch 6 75 HUS-105709X
...
56
Screw 3/8-16 x 1-1/4 HUS-17060620
...
57
V-Belt Gd Drive 9530 HUS-160855
...
59
Keeper Belt Centerspan HUS-169691
...
61
Screw 3/8-16 x .875 HUS-17120614
...
62
Cover Pedal Blk Round HUS-8883R
...
63
Pulley Eng Cl Cable HUS-175410
...
64
Bolt Hex 7/16-20 x 4 Gr 5 HUS-71170764
...
65
Washer Lock Hlcl Spr 7/16 HUS-10040700
...
66
Keeper Belt Engine FP HUS-154778
...
70
Guide Belt Mower Drive RH HUS-134683
...
74
Spacer Axle HUS-109502X
...
75
Washer 25/32 x 1-1/4 x 16 Ga HUS-121749X
...
76
E-ring #5133-75 HUS-12000001
...
77
Key Square 2 0 x 1845/ 1865 HUS-123583X
...
78
Washer 25/32 x 1-5/8 x 16 Ga HUS-121748X
...
79
Key Woodruff #9 3/16 x 3/4 HUS-2228M
...
96
Retainer Spring 1 HUS-4497H
...
112
Washer 9/32 x 3/4 x 10 Ga HUS-19091210
...
113
Strap Torque LH LT HUS-127285X
...
116
Bolt 3/8-16 x 1 HUS-72140608
...
119
Washer 13/32 x 5/8 x 16 Ga HUS-19131016
...
120
Nut Lock Flg 3/8-16 HUS-73900600
...
150
Spacer Retainer HUS-175456
...
151
Washer 13/32 x 2 x 10 Ga. HUS-19133210
...
170
Keeper Belt Transaxle Gear HUS-178394
...
202
Bolt Carr. Sh 3/8-16 x 1-3/4 Gr. 5 HUS-72110614
...
212
Nut Hex Flange Lock HUS-145212
...
250
Screw 3/8-16 x 3/4 HUS-17060612
