Husqvarna 271491 (2002) Tractor

Model: 271491 (2002)

Back To Assemblies

Save Part Not Listed?
product name

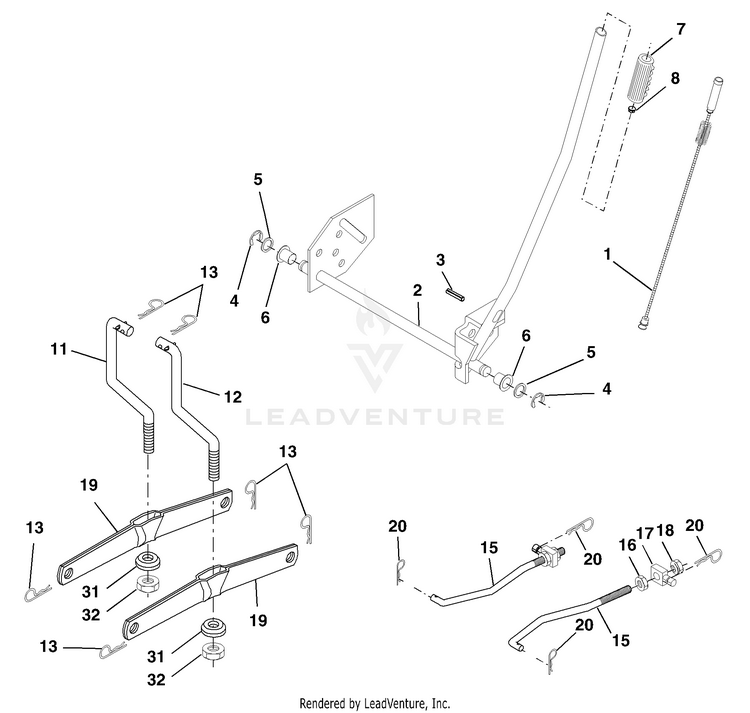

Lift Assembly

...
...
1
Wire Asm Inner W/plunger HUS-159460
...
2
Shaft Asm Lift HUS-159471
...
3
Pin Groove 1 500 Zinc HUS-105767X
...
4
E Ring #5133-62 HUS-12000002
...
5
Washer Pltd 21/32 X 1 X 21ga HUS-19211621
...
6
Bearing Nylon Blk 629 Id HUS-120183X
...
7
Grip Handle Fluted Blk HUS-125631X
...
8
Button Plunger Red HUS-122365X
...
11
Link Lift LH HUS-139865
...
12
Link Lift RH HUS-139866
...
13
Retainer Spring HUS-4939M
...
15
Link Front HUS-173288
...
16
Nut Jam Hex 1/2-13 Unc HUS-73350800
...
17
Trunnion Blk Zinc HUS-175689
...
18
Nut Lock w/Wsh 1/2-13 UNC HUS-73800800
...
19
Arm Suspension Rear HUS-139868
...
20
Retainer Spring Zinc HUS-163552
...
31
Bearing Pvt Lift HUS-169865
...
32
Nut Crownlock 3/8-24 HUS-73540600
