Husqvarna 271490 (2002) Tractor

Model: 271490 (2002)

Back To Assemblies

Save Part Not Listed?
product name

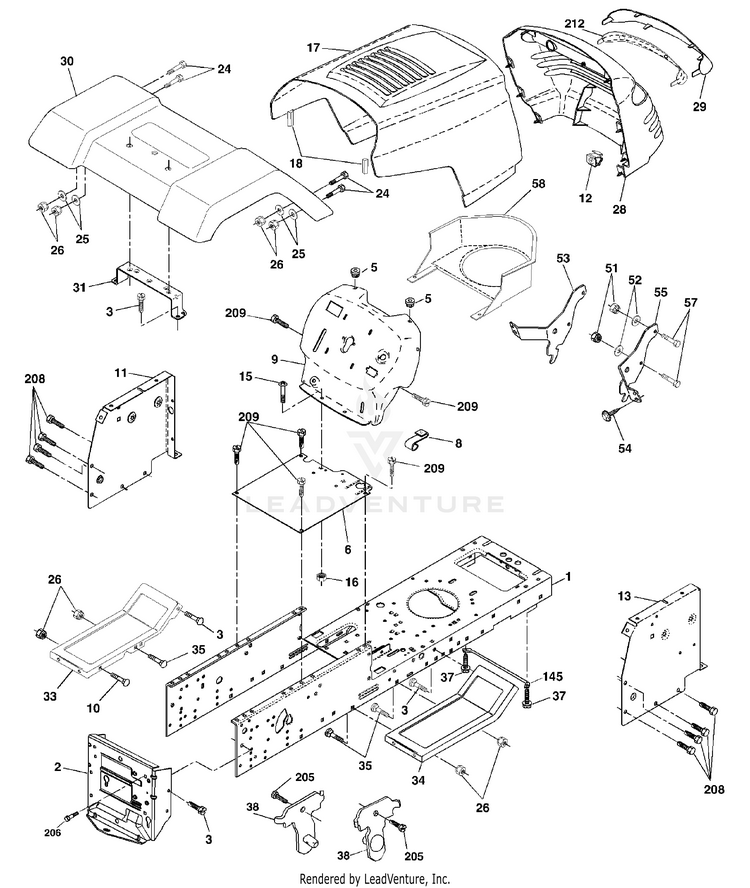

Chassis And Enclosures

...
...
1
Chassis HUS-174620
...
2
Drawbar HUS-176554
...
3
Screw 3/8-16 x 3/4 HUS-17060612
...
5
Bumper Hood/Dash HUS-155272
...
6
Saddle Slkscr Flt LT HUS-174643X014
...
8
Clip Retainer Slide-On HUS-155138
...
9
Dash HUS-168347X011
...
10
Bolt Rdhd Sqnk 3/8-16unc X 1 HUS-72140608
...
11
Panel Dash LH HUS-174996
...
12
Clip Tinnerman Grille P/L HUS-145660
...
13
Panel Slkscr Dash RH HUS-172105X010
...
15
Screw Mach TRHD 5/16-18 unc x 3/4 HUS-74180512
...
16
Nut Keps 5/16-18 Unc HUS-73510500
...
17
Hood Asm HUS-159639X417
...
18
Bumper Hood HUS-126938X
...
24
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 HUS-74780616
...
25
Washer 13/32 X 13/16 x 12 Ga HUS-19131312
...
26
Nut Hex Lock W/Ins. 3/8-16 Unc HUS-73680600
...
28
Grille/Lens Asm HUS-179777
...
29
Lens Headlight Bar Clear HUS-150209X599
...
30
Fender HUS-169465X417
...
31
Bracket Fender Repl 109873x HUS-136619
...
33
Footrest Pnt Lh HUS-179716X417
...
34
Footrest Pnt Rh HUS-179717X417
...
35
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 HUS-72110606
...
37
Screw Thdrol 5/16-18 x 1/2 HUS-17490508
...
38
Bracket Asm Pivot Mower Rear HUS-175710
...
51
Nut Lock Hex w/Ins 1/4-20 HUS-73800400
...
52
Washer 9/32 x 7/8 x 16 Ga. HUS-19091416
...
53
Bracket, Grille LH HUS-144697
...
54
Screw HUS-161464
...
55
Bracket, Grille RH HUS-144696
...
57
Bolt Hex 1/4-20 x 3/4 HUS-74780412
...
58
Air Duct P/L HUS-150127
...
145
Rod Pivot Chassis/Hood HUS-156524
...
205
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
206
Bolt Shoulder 5/16-18 HUS-170165
...
208
Screw thdrol 3/8-16 x 1/2 HUS-17670608
...
209
Screw Hex Wsh Thdrol 3/8-16 HUS-17000612
...
212
Insert Lens Reflective HUS-156494
...
xx
Plug Button Blk 359 Dia Choke HUS-5479J
