Husqvarna 271471 (2001) Tractor

Model: 271471 (2001)

Back To Assemblies

Save Part Not Listed?
product name

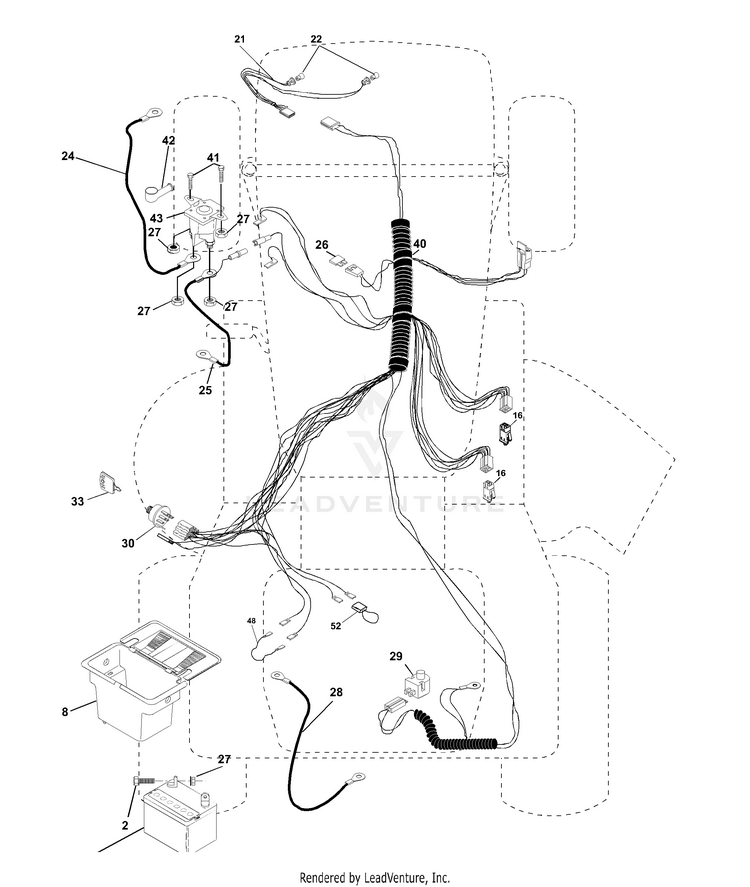

Electrical

...
...
1
Battery 12 Volt 25 Amp HUS-144925
...
2
Bolt, Hex Head 1/4-20 unc x 3/4 HUS-74760412
...
8
Case, Battery Mech Hinge HUS-156417
...
16
Switch, Interlock Push-In HUS-153664
...
21
Harness, Light Socket (Includes 4152J) HUS-166181
...
22
Bulb, Light HUS-4152J
...
24
Cable, Battery, 6 Gauge, Red, 11" HUS-4799J
...
25
Cable, Battery, 6 Gauge, Red, W/16 Wire HUS-146147
...
26
Fuse HUS-175158
...
27
Nut Keps Hex 1/4-20 UNC HUS-73510400
...
28
Cable, Ground, 6 Gauge, Black, 12" HUS-4207J
...
29
Switch, Plunger HUS-121305X
...
30
Switch, Ignition HUS-175566
...
33
Key, Ignition HUS-140401
...
40
Harness, Ignition HUS-178437
...
41
Bolt, Hex Head, Fin. 1/4-20 x 1/2 HUS-71110408
...
42
Cover, Terminal, Red HUS-131563
...
43
Solenoid HUS-178861
...
48
Adaptor Ammeter Rectangular HUS-140844
...
52
Protection Wire Loop HUS-141940
