Husqvarna 271470 (2001) Tractor

Model: 271470 (2001)

Back To Assemblies

Save Part Not Listed?
product name

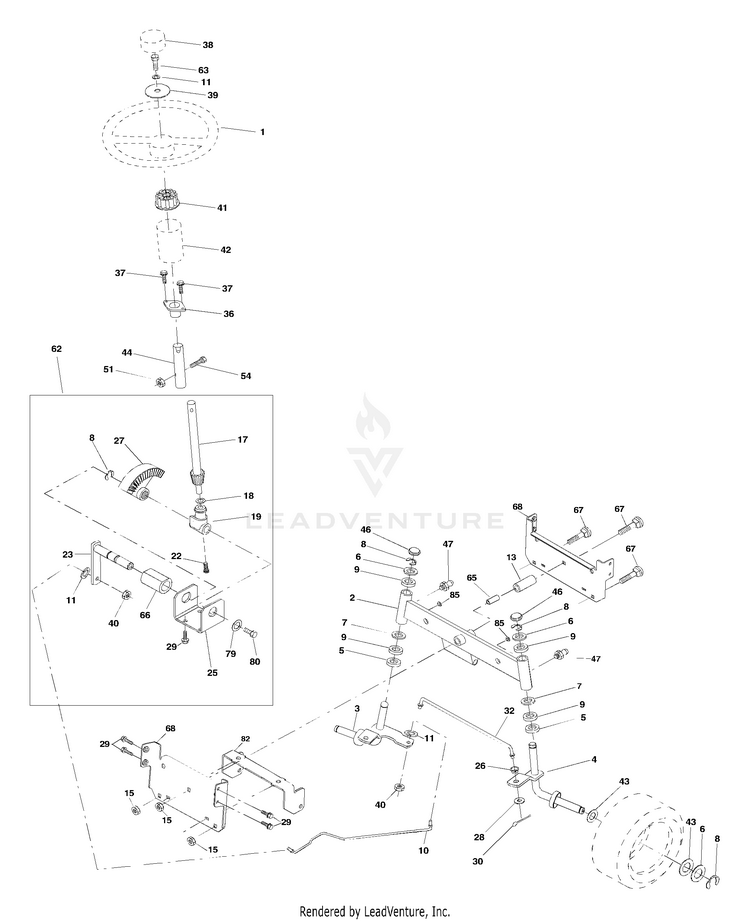

Steering

...
...
1
Steering Wheel HUS-140044X428
...
2
Axle Assembly STMP Dropped STL HUS-154427
...
3
Spindle Assembly, L.H. HUS-156483
...
4
Spindle Assembly, R.H. HUS-157473
...
5
Bearing, Race, Thrust, Hardened HUS-6266H
...
6
Washer 25/32 x 1-5/8 x 16 Gauge HUS-121748X
...
7
Washer 27/32 x 1-1/4 x 16 Gauge HUS-19272016
...
8
Ring, Klip HUS-12000029
...
9
Bearing, Steering Column HUS-3366R
...
10
Draglink HUS-169832
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
13
Spacer Bearing Axle Front HUS-136518
...
15
Hexflange Lock HUS-145212
...
17
Shaft Assembly, Steering HUS-156546
...
18
Washer, Thrust .515 x .750 x .033 HUS-57079
...
19
Support, Shaft HUS-160395
...
22
Screw, Hex Wshhd HUS-165857
...
23
Pittman Shaft Assembly HUS-165851
...
25
Bracket, Steering HUS-154406
...
26
Bushing, Link, Drag HUS-126847X
...
27
Gear, Sector HUS-136874
...
28
Washer 13/32 x 7/8 x 16 Gauge HUS-19131416
...
29
Screw, 3/8-16 x 3/4 HUS-17060612
...
30
Pin HUS-76020412
...
32
Rod, Tie HUS-130465
...
36
Bushing, Steering HUS-155099
...
37
Screw HUS-152927
...
38
Cap, Steering Wheel HUS-140045X428
...
39
Washer 13/32 x 2-3/8 x 12 Gauge HUS-19133812
...
40
Gripco Nut HUS-7810H
...
41
Adaptor, Steering Wheel HUS-100711L
...
42
Boot, Steering HUS-145054X428
...
43
Washer 25/32 x 1-1/4 x 16 Gauge HUS-121749X
...
44
Shaft Extension Steering HUS-153720
...
46
Cap, Spindle HUS-121232X
...
47
Fitting, Grease HUS-6855M
...
51
Nut lock Hex w/Ins 5/16-18 HUS-73800500
...
54
Bolt Fin Hex 5/16-18 UNC x 1-1/4 HUS-74780520
...
62
Kit Steering Asm Service HUS-167902
...
63
Bolt Fin Hex 3/8-16 x 1-1/4 HUS-74780616
...
65
Spacer Brace Axle HUS-160367
...
66
Bearing Arm Pittman HUS-154404
...
67
Bolt, Rdhd Sq 3/8-16 UNC x 2-1/4 HUS-72140618
...
68
Axle, Brace HUS-169827
...
79
Washer 13/32 x 1-1/4 x 12 Ga. HUS-19132012
...
80
Bolt Hex Nylon 3/8-16 x 3/4 HUS-74950612
...
82
Bracket Susp Chassis Front HUS-169835
...
85
Fastener Christmas Tree HUS-133835
