Husqvarna 271150 (2003) Tractor

Model: 271150 (2003)

Back To Assemblies

Save Part Not Listed?
product name

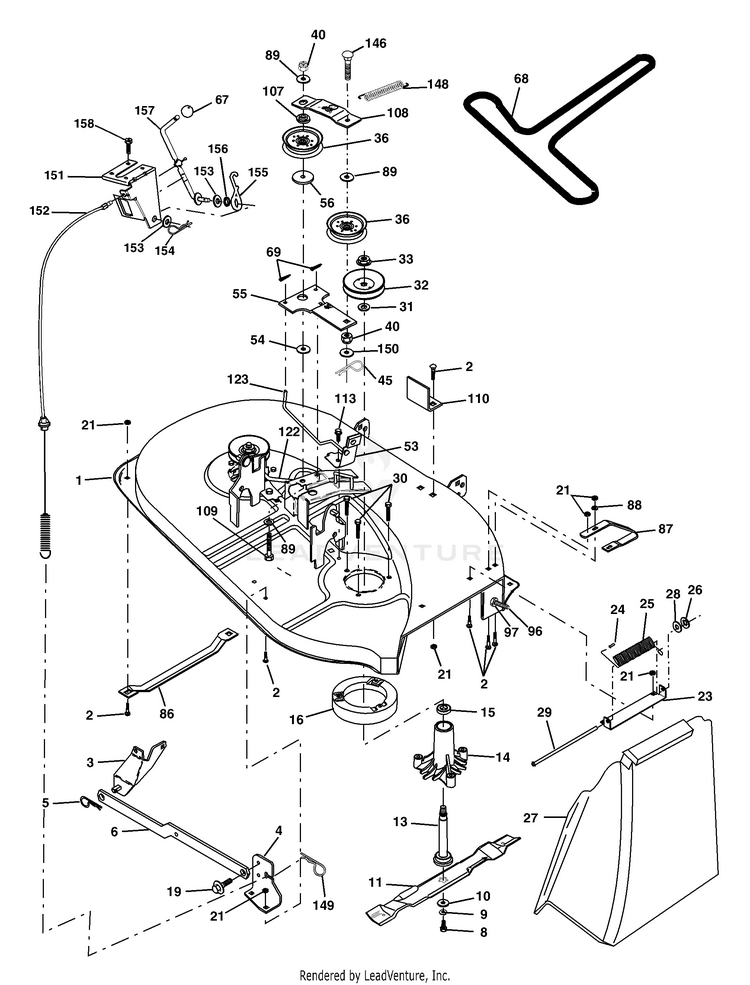

Mower Deck

...
...
1
Mower Housing Assembly HUS-170280
...
2
Bolt, Carriage 5/16-18 x 3/4 HUS-72140506
...
3
Bracket Asm. Fram Sway Bar HUS-138017
...
4
Bracket, Asm. Deck Sway Bar HUS-169970
...
5
Retainer, Spring HUS-4939M
...
6
Bar Sway Deck HUS-178024
...
8
Bolt, Hex 3/8-24 x 1-1/4 Gr 8 HUS-850857
...
9
Washer, Lock, Hlcl Sprg 3/8 HUS-10030600
...
10
Washer, Hard Blade Mower Vented (The following blades are HUS-140296
...
11
Blade, 38" Mulching Std (For mulching mowers only) HUS-134148
...
11
Blade, 38" Mulching Premium (For better wear when HUS-139774
...
11
Blade, 38" Hi-Lift (For Bagging and discharging) HUS-138497
...
13
Shaft and Bearing Assembly (Includes Key Number HUS-137645
...
14
Mandrel Housing, Vented HUS-128774
...
15
Ball Bearing, Mandrel HUS-110485X
...
16
Stripper, Mower, Vented HUS-174493
...
19
Bolt, Shoulder HUS-132827
...
21
Nut, Crownlock 5/16-18 HUS-73680500
...
23
Bracket, Mower Deflector HUS-137607
...
24
Cap, Sleeve HUS-105304X
...
25
Spring, Deflector HUS-123713X
...
26
Nut, Push HUS-110452X
...
27
Shield, Deflector HUS-106736X428
...
28
Washer 11/32 x 3/4 x 16 Ga HUS-19111016
...
29
Rod, Hinge HUS-106735X
...
30
Screw, Thdro HUS-173984
...
31
Washer, Spacer HUS-129963
...
32
Pulley, Mandrel HUS-153532
...
33
Nut, Flangelock 9/16 HUS-178342
...
36
Pulley, Idler, Flat HUS-131494
...
40
Nut Crownlock 3/8-16 HUS-73680600
...
45
Retainer, Spring HUS-4497H
...
53
Brake Assembly HUS-130840
...
54
Washer Hardened HUS-178515
...
55
Idler Arm Assembly HUS-133840
...
56
Spacer, Retainer HUS-165723
...
67
Knob HUS-149846
...
68
Belt HUS-144200
...
69
Pin, Cotter 3/32 x 3/4 HUS-76020312
...
86
Runner, LH HUS-7631J
...
87
Runner, RH HUS-128772
...
88
Washer 11/32 x 3/4 x 16 Ga HUS-19111216
...
89
Washer 13/32 x 1 x 12 Ga HUS-19131612
...
96
Bolt 3/8-16 x 1-1/4 HUS-74930620
...
97
Nut Centerlock 3/8-16 HUS-73930600
...
107
Spacer, Retainer HUS-133502
...
108
Stiffener, Idler Arm HUS-133503
...
109
Bolt, Hex Head 3/8-16 x2-1/2 HUS-74760640
...
110
Upstop Deck Front 38" HUS-142587
...
113
Screw 5/16-18 x 3/4 HUS-17060512
...
122
Rod, Brake, LH HUS-131289
...
123
Rod, Brake, RH HUS-169971
...
146
Bolt Carriage Idler HUS-165891
...
148
Spring Return Idler HUS-169022
...
149
Retainer Spring Yellow Zinc HUS-165898
...
150
Washer 9/32 x 3/4 x 16 Ga. HUS-19091216
...
151
Bracket Clutch HUS-169670
...
152
Cable Clutch 38 In HUS-172758
...
153
Washer Flat 3/8" Type B HUS-169674
...
154
Spring Retainer HUS-169675
...
155
Spring Retention Lever HUS-169671
...
156
Spacer HUS-169672
...
157
Rod Clutch HUS-169669
...
158
Screw Hex Thd Cut 1/4-20 x 1/2 HUS-17720408
...
xx
Mandrel Assembly (Includes Housing, Shaft and Shaft Hardware Only-Pulley Not Included) HUS-130794
...
xx
Replacement Mower, Complete HUS-171665
