Husqvarna 268 K (1991-09) Power Cutter

Model: 268 K (1991-09)

Back To Assemblies

Save Part Not Listed?
product name

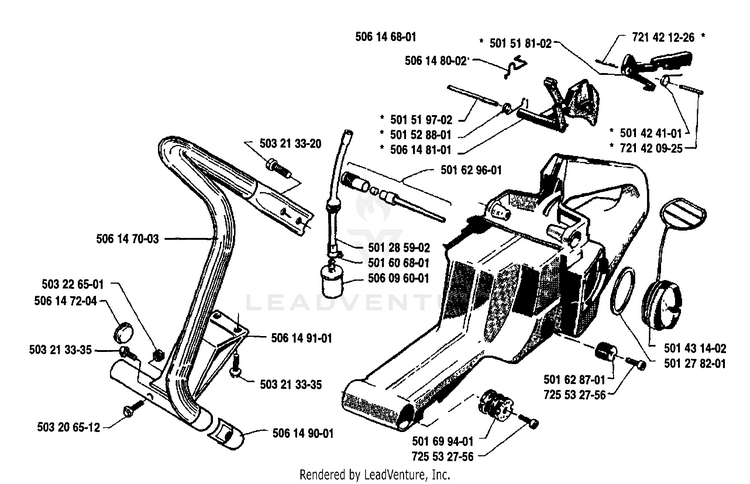

Tank Assembly

...
...
503213320
Screws HUS-503214974
...
506147003
HANDLE HUS-506147003
...
503226501
NUT HUS-503226504
...
506147204
HUS-506147204
...
503213335
SCREW HUS-503213335
...
506149101
SUPPORT HUS-506149101
...
503206512
SCREW HUS-503200312
...
503213335
SCREW HUS-503213335
...
506149001
SUPPORT HUS-506149001
...
506146801
TANK W/VENT WIRE HUS-506146801
...
506148002
THROTTLE ROD HUS-506148002
...
501518102
THROTTLE CATCH HUS-501518102
...
501519702
SHAFT HUS-501519702
...
501528801
SPRING HUS-501528801
...
506148101
LEVER HUS-506148101
...
501639601
HUS-501639601
...
501285902
FUEL HOSE HUS-501285902
...
501606801
CLAMP HUS-501606801
...
501424101
SPRING HUS-501424101
...
721420925
SPRING PIN 3X24 HUS-721421226
...
721421226
SPRING PIN 3X24 HUS-721421226
...
506096001
Filters HUS-598836601
...
501699401
ANTIVIBE ELEMENT HUS-501699401
...
725532756
SCREW MC6S 5X12 HUS-725532755
...
501628701
ANTIVIBE ELEMENT HUS-501628701
...
725532756
SCREW MC6S 5X12 HUS-725532755
...
501431402
TANK CAP HUS-501431402
...
51278201
HUS-51278201
