product name

Husqvarna 268 K (1991-04) Power Cutter

Model: 268 K (1991-04)

Back To Assemblies

Save Part Not Listed?
product name

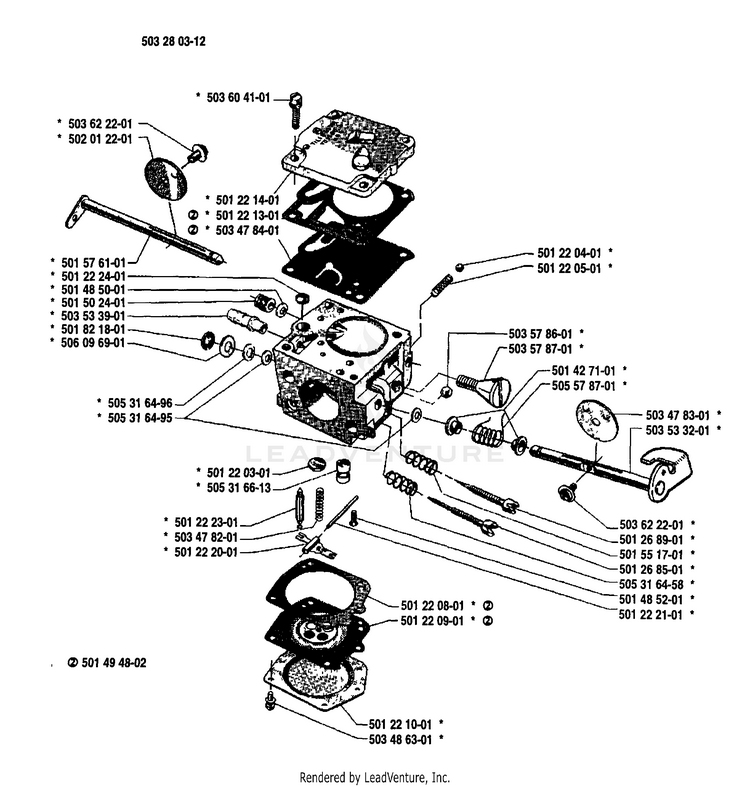

Carburetor Parts

...
...
503280312
CARBURETOR HD255B TILLOTSON HUS-503280317
...
503604101
SCREW HUS-501221501
...
503622201
SCREW HUS-503652701
...
502012201
CHOKE FLAP HUS-502012201
...
501221401
CAP HUS-501221401
...
501221301
GASKET, PUMP SIDE HUS-501221301
...
503478401
DIAPHRAGM HUS-503478401
...
501576101
CHOKE SHAFT AND LEVER HUS-501576101
...
501222401
FILTER HUS-578004601
...
501485001
GASKET HUS-501485001
...
501502401
HUS-501502401
...
503533901
NIPPLE HUS-503533901
...
501821801
RETAINING RING HUS-501821801
...
506096901
HUS-506096901
...
505316496
WASHER HUS-503653001
...
505316495
HUS-505316495
...
501220301
Plug HUS-501220301
...
505316613
VALVE HUS-503779801
...
501222301
NEEDLE HUS-501222301
...
503478201
SPRING HUS-503478201
...
501222001
LEVER HUS-501222001
...
501494802
DIAPHRAGM SET HUS-501494802
...
501221001
CAP HUS-501221001
...
503486301
COVER SCREW HUS-503486301
...
501220801
GASKET, METERING SIDE HUS-501220801
...
501220901
METERING DIAPHRAGM HUS-501220901
...
505578701
HUS-505578701
...
503478301
THROTTLE FLAP HUS-505316114
...
503533201
THROTTLE SHAFT & LEVER HUS-503533201
...
503622201
SCREW HUS-503652701
...
501268901
NEEDLE H HUS-501268901
...
501551701
HUS-501551701
...
501268501
IDLE ADJ. SCREW HUS-501268501
...
505316458
Pressure Spring HUS-505316458
...
501485201
SCREW HUS-501485201
...
501222101
SHAFT HUS-501222101
...
501220401
BALL HUS-501220401
...
501220501
SPRING HUS-501220501
...
503578601
BALL HUS-503578601
...
503578701
SCREW HUS-503578701
...
501427101
Bushing HUS-501427101
