Husqvarna 268 K (1991-04) Power Cutter

Model: 268 K (1991-04)

Back To Assemblies

Save Part Not Listed?
product name

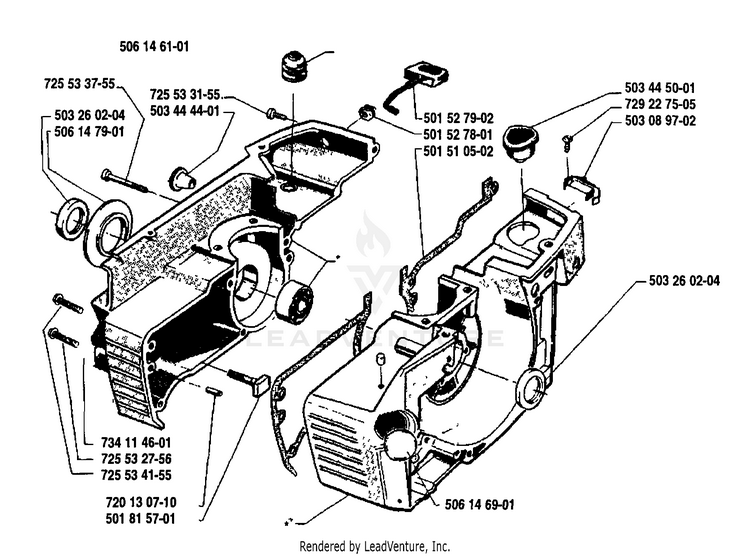

Crankcase

...
...
506146101
CRANKCASE HUS-506146101
...
725533755
SCREW MC6S 5X35 HUS-725533755
...
503260204
SEALING RING HUS-503260204
...
506147901
HOLDER HUS-506147901
...
725533155
SCREW ITXSCM HUS-525824902
...
503444401
BUSHING HUS-503723101
...
501527902
CHOKE CONTROL HUS-501527902
...
501527801
BUSHING HUS-501527801
...
501510502
GASKET, CRANCASE HUS-501510502
...
503445001
BELLOWS HUS-503445001
...
729227505
SCREW HUS-503212806
...
503089702
SWITCH ON/OFF HUS-503717901
...
503260204
SEALING RING HUS-503260204
...
506146901
CAP HUS-506146901
...
734114601
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
725532755
SCREW MC6S 5X12 HUS-725532755
...
725534155
SCREW MC6S 5X50 HUS-725534155
...
720130710
Pins HUS-720130752
...
501815701
BOLT HUS-501815701
