Husqvarna 268 (1990-05) Chain Saw

Model: 268 (1990-05)

Back To Assemblies

Save Part Not Listed?
product name

Carburetor Parts

...
...
503280316
CARBURETOR HUS-574331601
...
501223001
SCREW HUS-503652701
...
502012201
CHOKE FLAP HUS-502012201
...
501221501
SCREW HUS-501221501
...
501221401
CAP HUS-501221401
...
501221301
GASKET, PUMP SIDE HUS-501221301
...
501221201
FUEL PUMP DIAPHRAGM HUS-501221201
...
501576101
CHOKE SHAFT AND LEVER HUS-501576101
...
501222401
FILTER HUS-578004601
...
501696901
CONNECTION HUS-503801301
...
501821801
RETAINING RING HUS-501821801
...
501821701
WASHER HUS-501821701
...
503580909
CHECK VALVE KIT HUS-503580909
...
501220301
Plug HUS-501220301
...
501222301
NEEDLE HUS-501222301
...
501222501
SPRING HUS-501222501
...
501222001
LEVER HUS-501222001
...
501494802
DIAPHRAGM SET HUS-501494802
...
503486301
COVER SCREW HUS-503486301
...
503533601
COVER HUS-503533601
...
501220901
METERING DIAPHRAGM HUS-501220901
...
501220801
GASKET, METERING SIDE HUS-501220801
...
503419201
BALL HUS-503419201
...
503578701
SCREW HUS-503578701
...
501427101
Bushing HUS-501427101
...
503316605
HUS-503316605
...
501691101
THROTTLE FLAP HUS-501691101
...
503533201
THROTTLE SHAFT & LEVER HUS-503533201
...
501223001
SCREW HUS-503652701
...
503599501
NEEDLE H HUS-501268901
...
501221701
SPRING HUS-501221701
...
501268501
IDLE ADJ. SCREW HUS-501268501
...
501269001
SPRING HUS-501269001
...
501222201
SCREW HUS-501222201
...
501222101
SHAFT HUS-501222101
...
501220401
BALL HUS-501220401
...
501220501
SPRING HUS-501220501

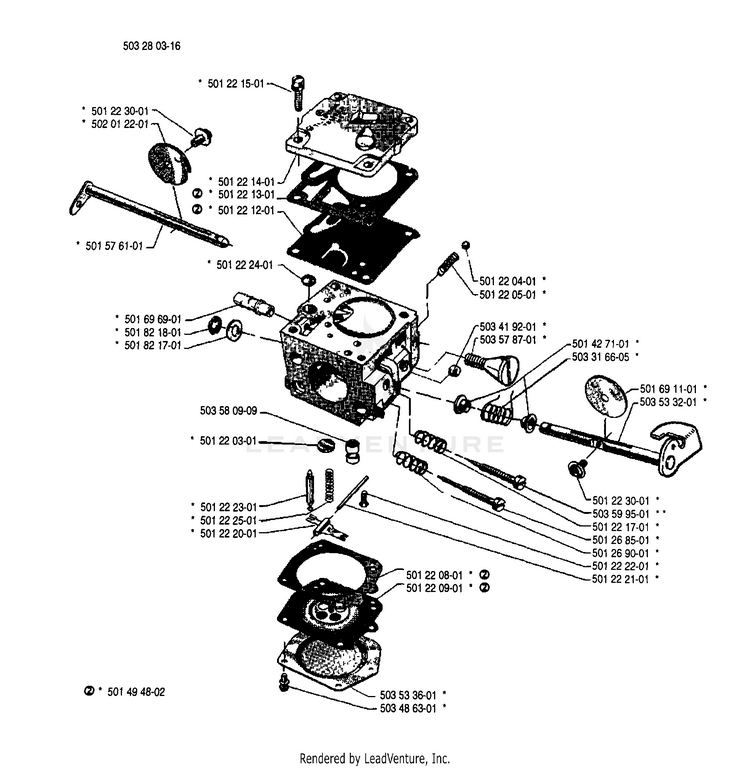

Schematic Image Zoomed
