product name

Husqvarna 266 Chain Saw

Model: 266

Back To Assemblies

Save Part Not Listed?

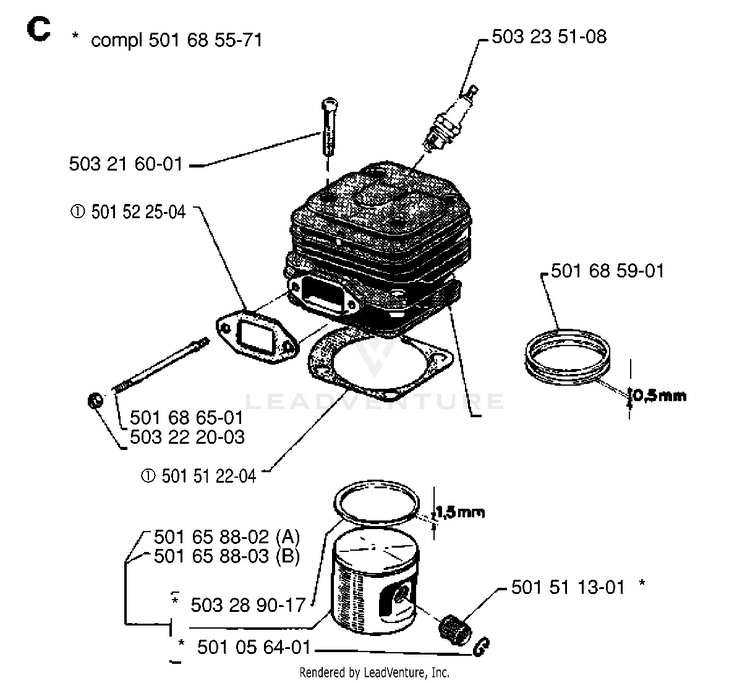

product name

CYLINDER PISTON

...
...
501 65 88-02
PISTON A HUS-501659403
...
501 65 88-03
PISTON B HUS-501659403
...
501 05 64-01
WRIST PIN CLIP HUS-737431200
...
501 68 55-71
CYLINDER W/ PISTON HUS-501685571
...
503 21 60-01
SCREW HUS-503216025
...
501 52 25-04
GASKET SILENCER HUS-501522504
...
501 51 22-04
GASKET HUS-501512204
...
501 68 65-01
STUD M5/M6 HUS-501686501
...
503 28 90-17
PISTON RING HUS-503289017
...
503 23 51-08
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
501 68 59-01
PISTON RING HUS-501685901
...
503 22 20-03
LOCKNUT HUS-503222302
...
501 51 13-01
NEEDLE BEARING PISTON PIN 12X1 HUS-577572401
