Husqvarna 266 (1990-01) Chain Saw

Model: 266 (1990-01)

Back To Assemblies

Save Part Not Listed?
product name

Tank Assembly

...
...
501699010
TANK UNIT CPL HUS-501699010
...
501687404
TANK UNIT CPL HUS-501687404
...
501285902
FUEL HOSE HUS-501285902
...
503443201
KIT FUEL FILTER HUS-591375401
...
721420925
SPRING PIN 3X24 HUS-721421226
...
501518102
THROTTLE CATCH HUS-501518102
...
721421226
SPRING PIN 3X24 HUS-721421226
...
721420925
SPRING PIN 3X24 HUS-721421226
...
501424101
SPRING HUS-501424101
...
501814301
PUSH ROD HUS-501814301
...
501528801
SPRING HUS-501528801
...
501519101
HUS-501519101
...
501519702
SHAFT HUS-501519702
...
501518002
LEVER HUS-501518002
...
501531801
REPAIR CUP HUS-501531801
...
501629601
VALVE HUS-501629601
...
501773501
ANTIVIBE ELEMENT HUS-501699401
...
501699401
ANTIVIBE ELEMENT HUS-501699401
...
501276301
ANTIVIBRATION ELEMENT HUS-501269705
...
501269702
ANTIVIBE ELEMENT HUS-501269702
...
501431402
TANK CAP HUS-501431402
...
501278201
WASHER HUS-501278201
...
501680801
PROTECTING CUP HUS-501680801
...
725532756
SCREW MC6S 5X12 HUS-725532755
...
501773401
ANTIVIBE ELEMENT HUS-501628701
...
501628701
ANTIVIBE ELEMENT HUS-501628701
...
501530501
ANTIVIBE ELEMENT HUS-501530501
...
501594101
ANTIVIBE ELEMENT HUS-501594101
...
725532756
SCREW MC6S 5X12 HUS-725532755
...
503586201
FRONT HANDLE W/A HUS-503586201
...
503226501
NUT HUS-503226504
...
503200001
SCREW M6SF 5X20 HUS-503200001
...
503211404
SCREW HUS-503210622
...
501534503
FRONT HANDLE HUS-501534503
...
503586301
SPACER HUS-503586301
...
503200001
SCREW M6SF 5X20 HUS-503200001
...
503211404
SCREW HUS-503210622
...
503200006
BOLT M6SF 5X35 HUS-503200006
...
503200003
SCREW ISO 4014 M6X12 8.8 ZPB HUS-531119208

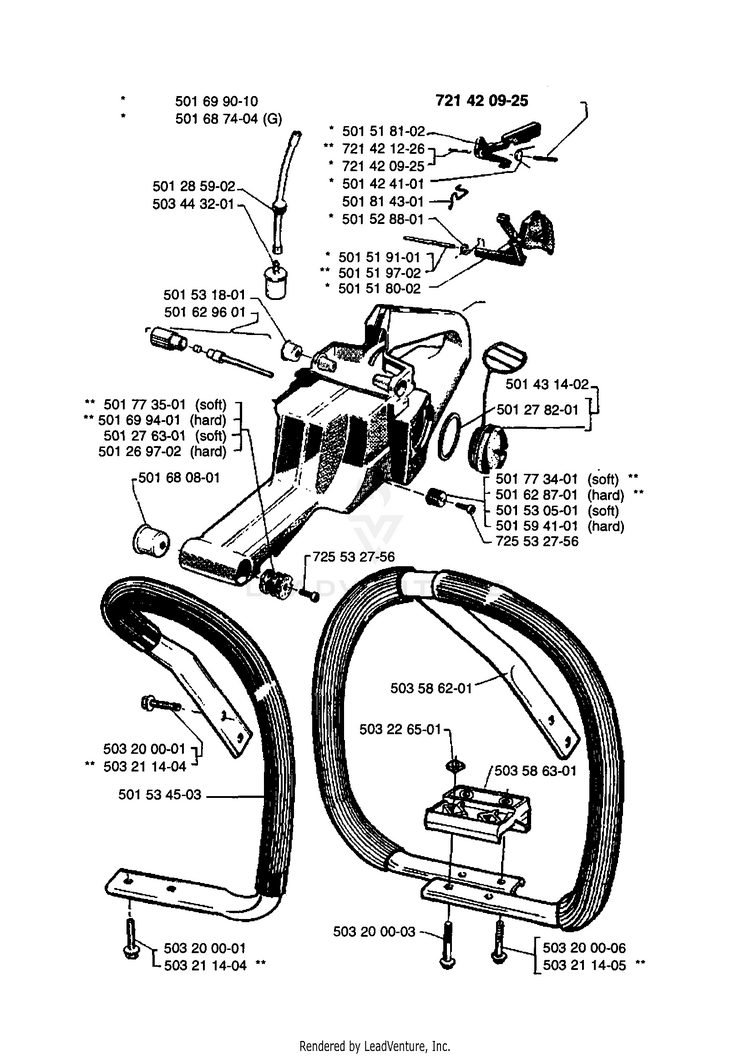

Schematic Image Zoomed
