Husqvarna 265 RX (1992-05) Clearing Saw

Model: 265 RX (1992-05)

Back To Assemblies

Save Part Not Listed?
product name

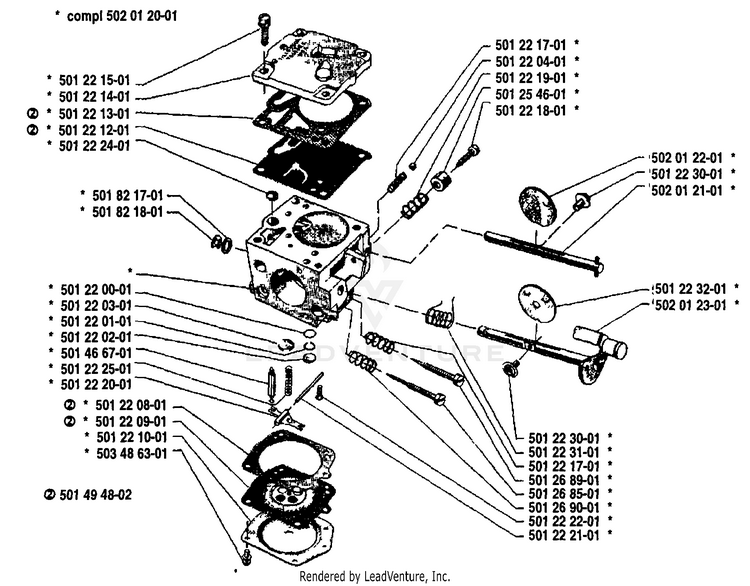

Carburetor Parts

...
...
502012001
CARBURETOR HUS-502012001
...
501221501
SCREW HUS-501221501
...
501221401
CAP HUS-501221401
...
501221301
GASKET, PUMP SIDE HUS-501221301
...
501221201
FUEL PUMP DIAPHRAGM HUS-501221201
...
501222401
FILTER HUS-578004601
...
501821701
WASHER HUS-501821701
...
501821801
RETAINING RING HUS-501821801
...
501220001
SCREEN HUS-501220001
...
501220301
Plug HUS-501220301
...
501220101
LOCKING RING HUS-501220101
...
501220201
PLUG (TIL 179-60X) HUS-501220201
...
501466701
VALVE/INLET. HUS-503117001
...
501222501
SPRING HUS-501222501
...
501222001
LEVER HUS-501222001
...
501220801
GASKET, METERING SIDE HUS-501220801
...
501220901
METERING DIAPHRAGM HUS-501220901
...
501221001
CAP HUS-501221001
...
503486301
COVER SCREW HUS-503486301
...
501221701
SPRING HUS-501221701
...
501220401
BALL HUS-501220401
...
501221901
SPRING HUS-501221901
...
501254601
SLEEVE HUS-501254601
...
501221801
SCREW HUS-501221801
...
502012201
CHOKE FLAP HUS-502012201
...
501223001
SCREW HUS-503652701
...
502012101
CHOKE SHAFT HUS-502012101
...
501223201
THROTTLE FLAP HUS-501223201
...
502012301
Throttle Shaft HUS-502012301
...
501223001
SCREW HUS-503652701
...
501223101
HUS-501223101
...
501221701
SPRING HUS-501221701
...
51268901
HUS-51268901
...
501268501
IDLE ADJ. SCREW HUS-501268501
...
501269001
SPRING HUS-501269001
...
501222201
SCREW HUS-501222201
...
501222101
SHAFT HUS-501222101
...
501494802
DIAPHRAGM SET HUS-501494802
