Husqvarna 262 (1990-03) Chain Saw

Model: 262 (1990-03)

Back To Assemblies

Save Part Not Listed?
product name

Tank Assembly

...
...
501768302
FUEL HOSE HUS-581756103
...
501814704
ABSORBER HUS-503514801
...
501819602
TANK CAP HUS-537215207
...
501873101
FUEL TANK VENT HUS-501873101
...
503213316
SCREW IHSCFT PW5.5X16 8.8 ZN/ HUS-503214972
...
503213325
SCREW HUS-503214925
...
503213425
SCREW HUS-503210525
...
503263011
O-RING HUS-503263017
...
503404701
HANDLE FILLER HUS-503404701
...
503443201
KIT FUEL FILTER HUS-591375401
...
503497401
TANK UNIT CPL. HUS-503497401
...
503497402
HUS-503497402
...
503501701
HUS-503501701
...
503501702
COVER STD HUS-503501702
...
503509301
THROTTLE TRIGGER, SET HUS-503527301
...
503509401
SPRING HUS-503509401
...
503533301
THROTTLE TRIGGER, SET HUS-503527301
...
503533302
THROTTLE TRIGGER, SET HUS-503527301
...
503540101
FRONT HANDLE HUS-503540103
...
503540701
ABSORBER HUS-503540701
...
503541001
MOVEMENT LIMITER HUS-503541001
...
503546102
SUPPORT HUS-503546102
...
506130902
HUS-506130902
...
720124020
PIN HUS-720182520
...
720131420
PIN HUS-720131520
...
729534205
NEEDS DESCRIPTION HUS-586505201

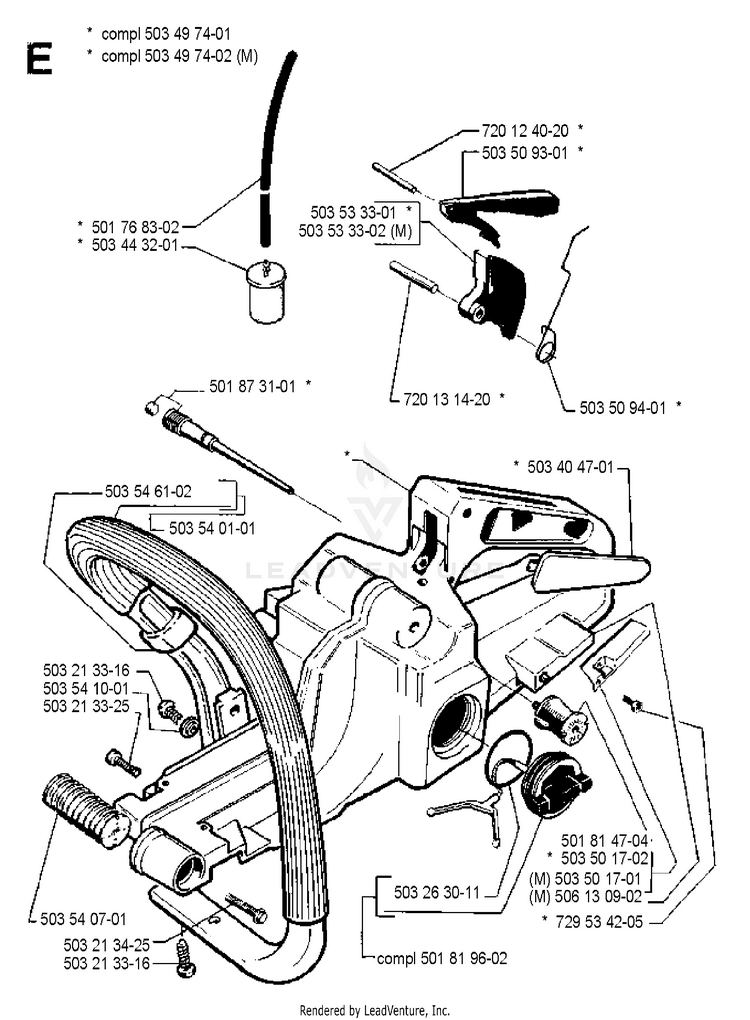

Schematic Image Zoomed
