Husqvarna 262 (1990-03) Chain Saw

Model: 262 (1990-03)

Back To Assemblies

Save Part Not Listed?
product name

Ignition/Flywheel

...
...
501485402
SPARK PLUG CONN. KIT HUS-501485402
...
501485601
SPARK PLUG CONN. KIT HUS-501485402
...
501492403
GENERATOR HUS-501492403
...
501492703
COVER HUS-501492703
...
501597404
SPACER HUS-501597404
...
501629305
HANDLE CIRCUIT HUS-501629305
...
501634403
CABLE HUS-501634403
...
501634801
SPRING HUS-501634801
...
501673201
PAWL HUS-501673201
...
501795102
WASHER HUS-501795102
...
501819902
SCREW M5X14 HUS-501819901
...
501839805
SHORTING LEAD HUS-501839801
...
501839806
HUS-501839806
...
503085201
WASHER HUS-503085201
...
503089702
SWITCH ON/OFF HUS-503717901
...
503098002
SWITCH HUS-503718101
...
503128201
FLYWHEEL HUS-503529401
...
503128202
FLYWHEEL HUS-503529402
...
503214006
SCREW HUS-503212806
...
503221011
NUT M8X1 HUS-503221011
...
503230042
WASHER HUS-503230042
...
503237202
INSULATING CAP HUS-503237202
...
503540102
FRONT HANDLE KIT HUS-503660401
...
506027204
IGNITION MODULE HAS3.1.3CCN100 HUS-587329503
...
506027205
HUS-506027205
...
723522405
SCREW 3X10 HUS-724322405
...
725529156
SCREW MC6S 4X12 HUS-725529155
...
725529455
SCREW MC6S 4X18 HUS-725529455
...
729222101
SCREW CSK B4X6 HUS-729222101
...
734112401
WASHER BRB 3.2X7 HUS-734112401
...
734485101
FLAT WASHER 4.3X8 HUS-734485101

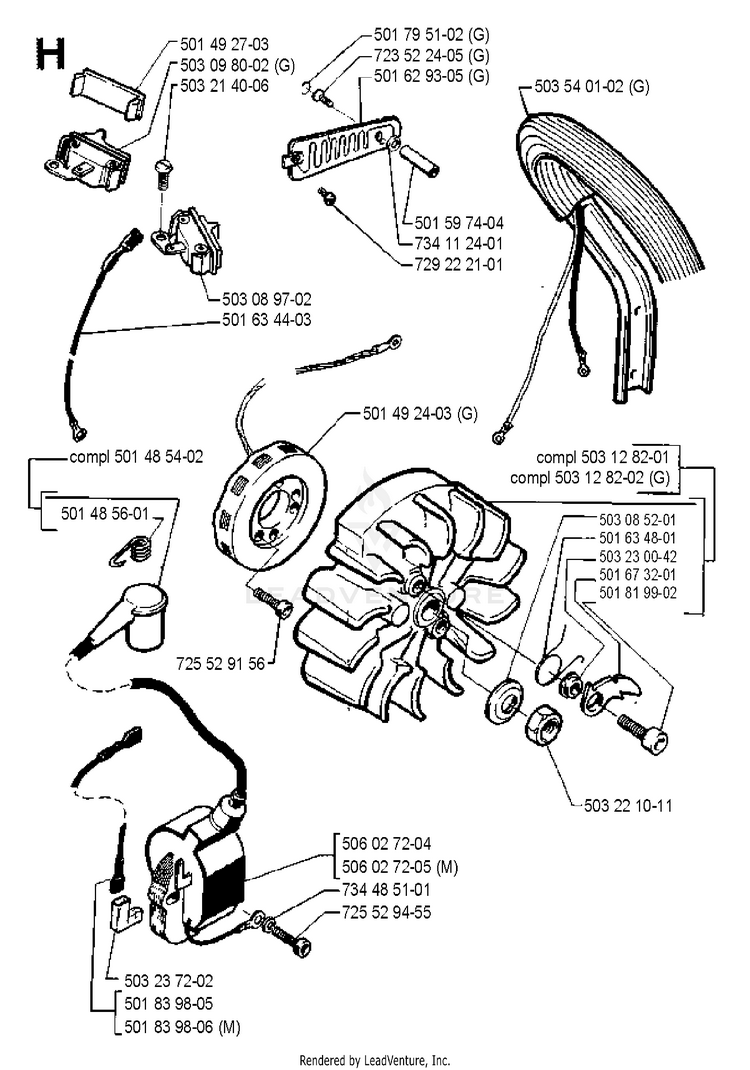

Schematic Image Zoomed
