Husqvarna 260 Type 5 (2008-03) Chain Saw

Model: 260 Type 5 (2008-03)

Back To Assemblies

Save Part Not Listed?
product name

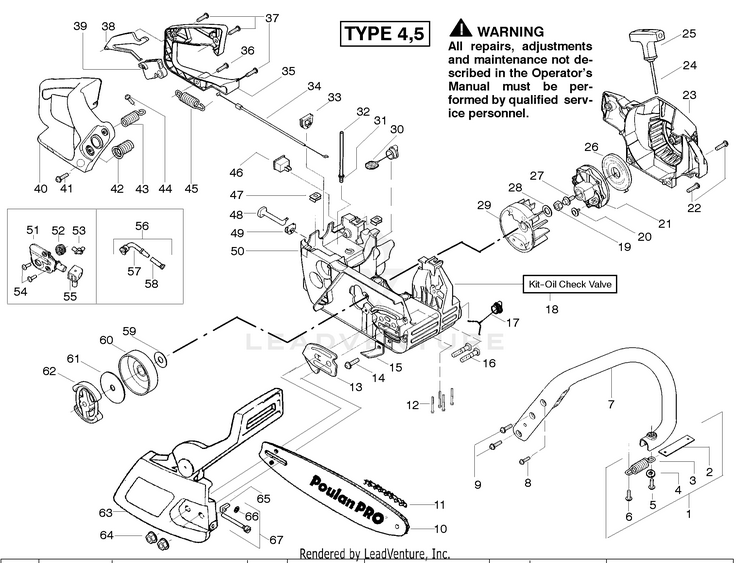

Starter - Type 4-5

...
...
1
SPRING HUS-545006036
...
2
AV Strap HUS-530037009
...
3
Spring- Isolator HUS-530042082
...
4
Washer HUS-530015123
...
5
Screw HUS-530016018
...
6
Screw HUS-530015843
...
7
HANDLE HUS-545048001
...
8
Screw HUS-530015940
...
9
Screw HUS-530015814
...
10
Bar-18" "Quick Adjust" HUS-530044835
...
11
Chain-18" HUS-952051338
...
12
Screw HUS-530016132
...
13
Plate-Bar Mounting HUS-530038238
...
14
Screw HUS-530015814
...
15
Chain Catcher HUS-530029850
...
16
Bolt-Bar HUS-530016133
...
17
Assy-Oil Cap HUS-530057236
...
18
Kit-Oil Check Valve HUS-530071666
...
19
Nut- Flywheel HUS-530016134
...
20
Screw HUS-530016080
...
21
STARTER PULLEY HUS-545034301
...
22
Screw HUS-530015892
...
23
Fan Housing HUS-530049335
...
24
Kit - Rope HUS-530069232
...
25
Handle-Starter HUS-530056402
...
26
SPRING STARTER HUS-545008015
...
27
Screw HUS-530015920
...
28
Washer- Flywheel HUS-530015127
...
29
Assy- Flywheel HUS-530039187
...
30
FUEL CAP ASSY W/RET HUS-577858501
...
31
Fitting- fuel line HUS-530023877
...
32
Kit-Fuel line (large) HUS-530069216
...
33
Grommet-Cable HUS-530047631
...
34
Cable-Throttle HUS-530047602
...
35
Cover-Rear Handle HUS-530047581
...
36
Screw HUS-530015886
...
37
Screw HUS-530015906
...
38
Throttle Lockout HUS-530036098
...
39
Trigger-Throttle HUS-530036097
...
40
Handle - Rear HUS-530047582
...
41
Screw HUS-530015814
...
42
SPRING HUS-545006036
...
43
SPRING HUS-545006036
...
44
Screw HUS-530015875
...
45
Spring- Isolator HUS-530042082
...
46
Kit-Switch HUS-530069572
...
47
Nut- "U"-Type HUS-530015922
...
48
Knob-Choke HUS-530047605
...
49
Grommet-Knob HUS-530049005
...
50
Assy-Chassis (Incl. 16,17,30 filter & fuel lines) HUS-530056596
...
51
Kit - Oil Pump (Incl. 52,53,55) HUS-530071259
...
52
Gear-Worm Spring HUS-530037820
...
53
Elbow-Oil Pickup HUS-530049477
...
54
SCREW 6-19X.437 HUS-545227101
...
55
Seal Block HUS-530019206
...
56
Assy-Oil Pick-up (Incl. 57,58) HUS-530047663
...
57
Pick-up Oiler HUS-530038373
...
58
Oil Filter HUS-530056533
...
59
Washer-Thrust HUS-530015907
...
60
Assy.-Clutch Drum w/bearing HUS-530047061
...
61
Washer-Clutch HUS-530015611
...
62
Assy. Clutch HUS-530014949
...
63
Assy.-Chain Brake HUS-545139915
...
64
Nut-Bar Mounting HUS-530015917
...
65
Pin-Bar Adjust HUS-530015826
...
66
Retainer-Bar Adjust HUS-530038593
...
67
Kit-Bar Adj. (Incl.65,66) HUS-530069611
