Husqvarna 260 Type 2 (2008-03) Chain Saw

Model: 260 Type 2 (2008-03)

Back To Assemblies

Save Part Not Listed?

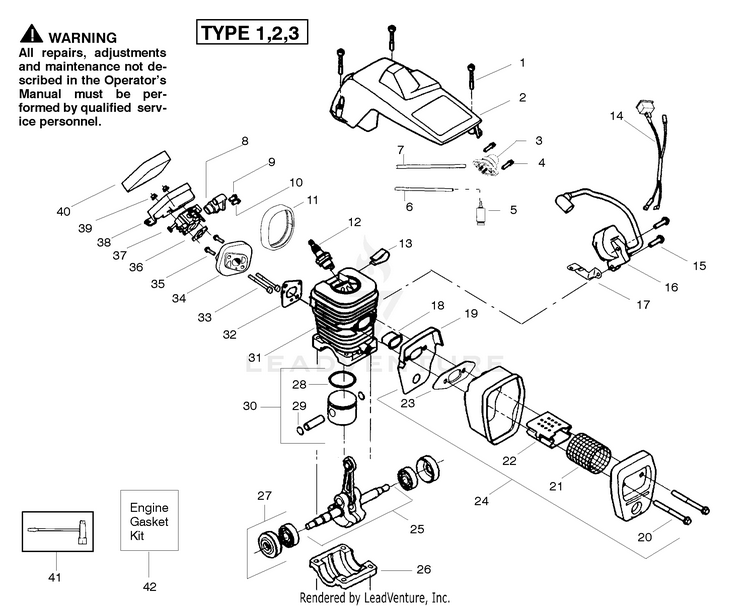

product name

Engine - Type 1-3

...
...
1
Screw HUS-530016153
...
2
Cylinder Shield HUS-530053183
...
3
Kit- Air Purge HUS-530071835
...
4
Screw HUS-530015780
...
5
Fuel Pick-up Ass’y. HUS-530095646
...
6
Kit-Line Purge/Carb. (Small Dia) HUS-530069247
...
7
Kit-Line Purge/Tank (large line) HUS-530069216
...
8
Grommet-Carb Adjust. HUS-530049244
...
9
Limiter Cap-High HUS-530038479
...
10
Limiter Cap-Low HUS-530038478
...
12
BPMR7A NGK SPARK PLUG HUS-503235111
...
13
Clip-High Tension Lead HUS-530016136
...
14
Wire Harness Ass’y. (Includes switch) HUS-530049117
...
15
Screw HUS-530015814
...
16
Ignition Module Walbro (Refer to Service Reference) HUS-530039198
...
16
Ignition Module Phelon HUS-530039167
...
17
Ground Strap HUS-530047442
...
18
Heat Insulator HUS-530037652
...
19
Muffler Back Plate HUS-530049870
...
20
Screw HUS-530016132
...
21
Spark Screen HUS-530036103
...
22
Muffler Diffuser HUS-530037813
...
23
Muffler Gasket HUS-530019221
...
24
MUFFLER (Incl. 19,20, 21,22,23) HUS-530071904
...
25
Crankshaft Assy. HUS-530047062
...
26
Cap-Crankcase HUS-530037935
...
27
Seal & Bearing Assy. HUS-530056363
...
28
Ring-Piston HUS-545160401
...
29
Retainer - Piston Pin HUS-530015697
...
30
Piston Kit (incl. 28-29) HUS-530069719
...
31
Cylinder Kit HUS-530069720
...
32
Gasket - Carb. Adapter HUS-530019249
...
33
Screw HUS-530016187
...
34
Cylinder Shield (Incl. 11,2,36,32) HUS-530071310
...
35
Screw HUS-530016386
...
36
GASKET HUS-530019271
...
37
KIT-CARBURETOR (WT-625) (Incl. 9 & 10) HUS-530071621
...
38
Air Filter Housing HUS-530047604
...
39
Nut HUS-530016101
...
40
Air Filter - Foam HUS-530037793
...
41
Scrench HUS-530031163
...
42
Engine Gasket Kit (Incl. 36,32,23) HUS-530069608
...
42
Operator Manual Not Shown HUS-530088311
...
42
Instruction Decal Not Shown HUS-530038257
