Husqvarna 26 LC (1993-05) Line Trimmer

Model: 26 LC (1993-05)

Back To Assemblies

Save Part Not Listed?
product name

Pole Assembly

...
...
530069322
KIT-SHIELD (SERVICE) BLACK HUS-530069249
...
530029950
SWITCH-KILL W/LEADS HUS-530029950
...
530029758
COVER-KILL SWITCH (GRAY) HUS-530029758
...
530029762
GRIP HUS-530029762
...
530014372
THROTTLE HOUSING ASSEMBLY HUS-530014372
...
530014331
THROTTLE HOUSING ASSEMBLY HUS-530014372
...
530015932
SCREW-8-16X3/8 (PLASTIC) HUS-530015932
...
530015933
SCREW 10-24X1-5/8 HUS-530015933
...
530015768
LOCKNUT-HEX 10-24 HUS-530015768
...
530095025
SHAFT-FLEX (48") HUS-530094551
...
530094551
SHAFT-FLEX (48") HUS-530094551
...
530095016
DRIVE ASSEM. HUS-530095711
...
530094641
ASM-DR.SHAFT W/SHIELD HUS-530071371
...
530015337
SCREW HUS-530015337
...
530094570
LIMITER-LINE HUS-530094570
...
530015653
NUT HEX LOCK 10-24 HUS-530403094
...
530094543
DUST CUP HUS-530094543
...
530029373
BRACKET-SHIELD HUS-530029373
...
530093653
BRACKET-SHIELD HUS-530093653
...
530092243
SCREW - SHIELD HUS-530016107

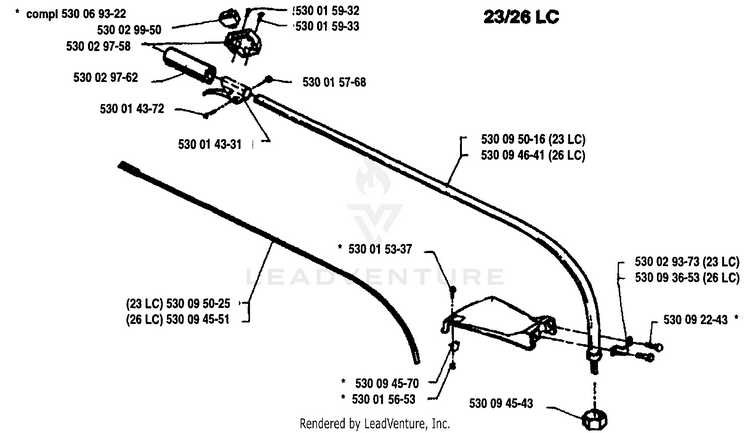

Schematic Image Zoomed
