Husqvarna 26 LC (1991-04) Line Trimmer

Model: 26 LC (1991-04)

Back To Assemblies

Save Part Not Listed?
product name

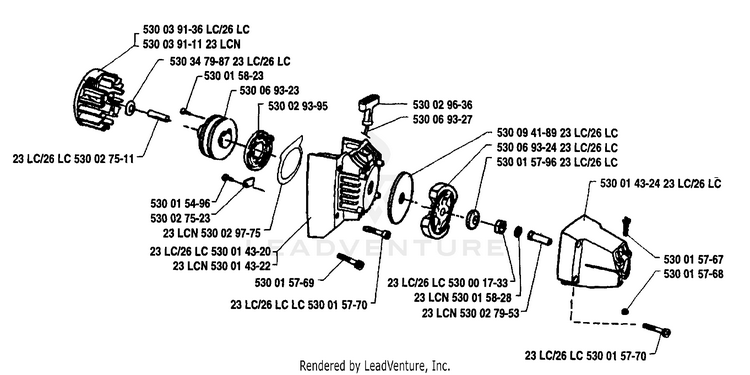

Starter Assembly

...
...
530039136
FLYWHEEL HUS-530039189
...
530039111
FLYWHEEL ASSEMBLY HUS-530047198
...
530347987
WASHER HUS-530016030
...
530015823
SCREW HUS-530016080
...
530069323
STARTER PULLEY HUS-530071387
...
530029395
STARTER SPRING HUS-545008010
...
530027511
SPACER-CLUTCH HUS-530027511
...
530015496
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
530027523
RETAINER HUS-530027523
...
530029775
HUS-530029775
...
530014320
FAN HSG. ASSY. HUS-530014320
...
530014322
HUS-530014322
...
530015769
SCREW-10-24X1-3/8-TAPTI HUS-530015769
...
530015770
Screw HUS-530015770
...
530001733
NUT HUS-530001733
...
530015828
WASHER FLAT HUS-530015828
...
530027953
COUPLING-DRIVE HUS-530027953
...
530015770
Screw HUS-530015770
...
530014324
CLUTCH HSG. HUS-530014324
...
530015767
SCREW-10-24 X 1-3/8 (UN HUS-530015767
...
530015768
LOCKNUT-HEX 10-24 HUS-530015768
...
530029636
STARTER HANDLE GRAY HUS-530150318
...
530069327
KIT-ROPE HUS-530069232
...
530094189
WASHER-CLUTCH HUS-530094189
...
530069324
KIT-CLUTCH ASS'Y HUS-530069254
...
530015796
WASHER-BELLEVILLE HUS-530015796
