Husqvarna 259724 (2001) Tractor

Model: 259724 (2001)

Back To Assemblies

Save Part Not Listed?
product name

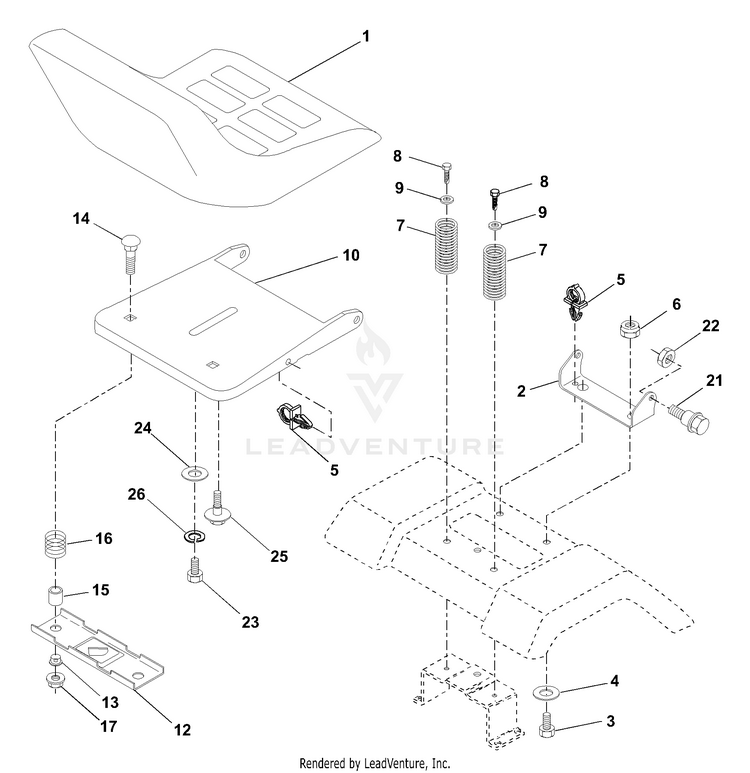

Seat Assembly

...
...
1
Seat HUS-127426X
...
2
Bracket Pvt St HUS-140551
...
3
Bolt Fin Hex 3/8-16unc X 1 HUS-71110616
...
4
Washer Flat 13/32 X 1X10 Ga HUS-19131610
...
5
Clip Push-In Hinged HUS-145006
...
6
Nut Crownlock 3/8-16 UNC HUS-73800600
...
7
Spring Seat Cprsn 2 250 Blk HUS-124181X
...
8
Screw 3/8-16 X 1-1/2 HUS-17000616
...
9
Washer 13/32 X 1 X 14 Ga HUS-19131614
...
10
Pan Seat HUS-174894
...
12
Bracket Mounting Switch HUS-121246X
...
13
Bushing Snap Blk Nyl 50 Id HUS-121248X
...
14
Bolt Rdhd Sht 1/4-20x1-1/2 HUS-72050412
...
15
Spacer Split 28x 96 Yel Zinc HUS-134300
...
16
Spring Cprsn 1 27 Blk Pnt HUS-121250X
...
17
Nut Lock 1/4 Lge Flg Gr 5 HUS-123976X
...
21
Bolt Shld 5/16-18 Unc-2A HUS-171852
...
22
Nut Crown Lock Hex 5/16-18 HUS-73800500
...
23
Bolt Hex Black HUS-71110814
...
24
Washer 17/32 X1-3/16X12 Ga HUS-19171912
...
25
Bolt Shoulder HUS-127018
...
26
Washer Lock Hvy Hlcl 1/2 HUS-10040800
Schematic Image Zoomed
