Husqvarna 259724 (2001) Tractor

Model: 259724 (2001)

Back To Assemblies

Save Part Not Listed?
product name

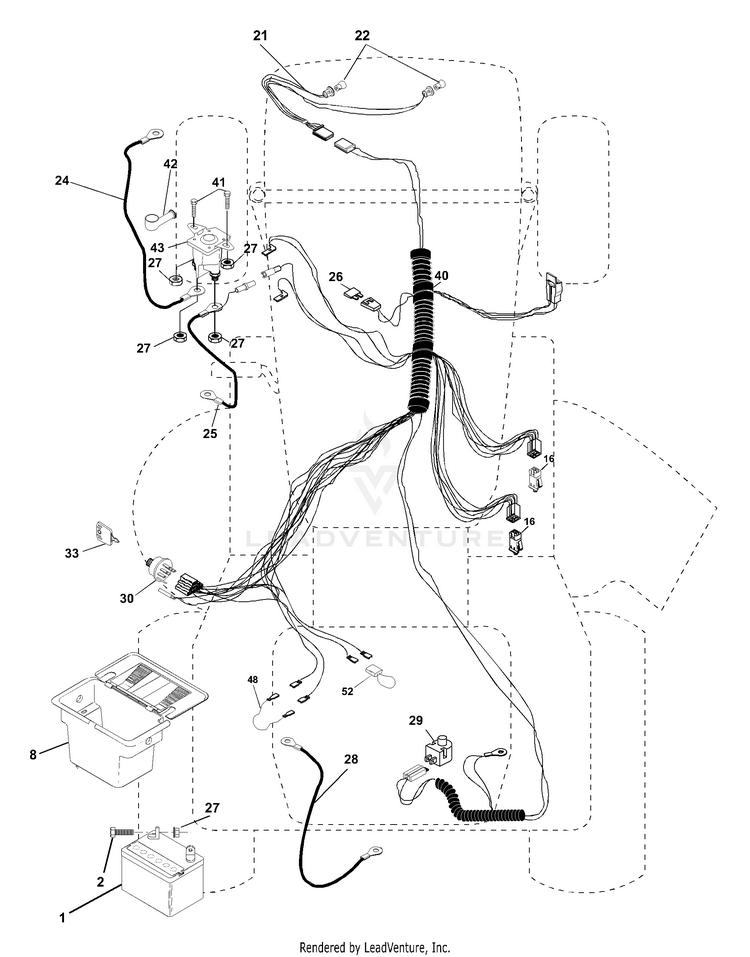

Electrical

...
...
1
Battery HUS-144925
...
2
Bolt Hex Hd 1/4-20unc X 3/4 HUS-74760412
...
8
Case Battery HUS-156417
...
16
Switch Interlock Push-In HUS-153664
...
21
Harness Socket Light W/4152J HUS-166181
...
22
Bulb Light #1156 HUS-4152J
...
24
Cable Battery 6ga 161" red HUS-108423X
...
25
Cable Battery 6 Ga W/16 Wir red HUS-146147
...
26
Fuse 15 AMP HUS-175158
...
27
Nut Keps Hex 1/4-20 Unc HUS-73510400
...
28
Cable Ground 6ga 12" black HUS-4207J
...
29
Switch Plunger Nc Gray HUS-121305X
...
30
Switch Ign HUS-175566
...
33
Key Ign HUS-140401
...
40
Harness Ign HUS-178437
...
41
Bolt Blk Hex 1/4-20unc x 1/2 HUS-71110408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-178861
...
48
Adapter Ammeter Rectangular HUS-140844
...
52
Protection Wire Loop HUS-141940
