Husqvarna 259723 (1999 & Before) Tractor

Model: 259723 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

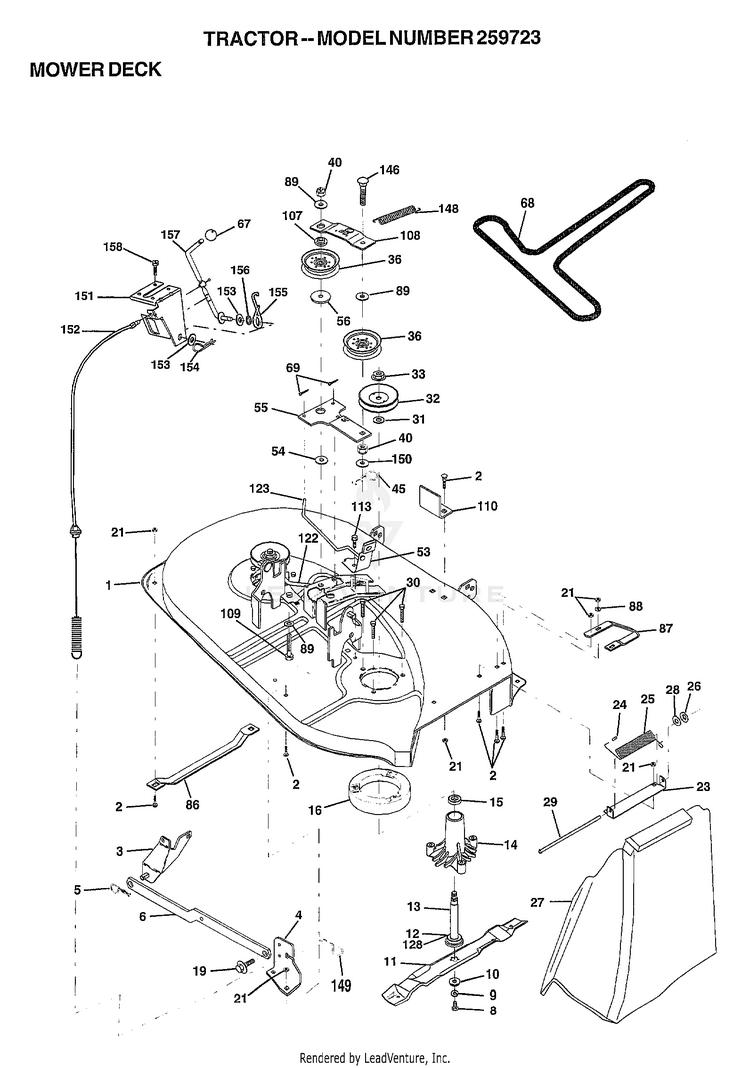

MOWER DECK

...
...
1
MOWER HSG ASSY HUS-170280
...
2
BOLT HUS-72140506
...
3
BRKT ASM SWAY BAR HUS-138017
...
4
BRKT SWAY BAR DECK HUS-169970
...
5
SUB= 85902 HUS-4939M
...
6
SUB= 130833 HUS-130832
...
8
BLADE BOLT HUS-850857
...
9
SUB= 10040600 HUS-10030600
...
10
WASHER.HARD.BLADE HUS-140296
...
11
"BLADE.38"" HIPERF" HUS-138497
...
12
BEARING.BALL HUS-129895
...
13
SUB= 137646 HUS-137645
...
14
HSG ASM MANDREL HUS-128774
...
15
BEARING HUS-110485X
...
16
STRIPPER RND MWR HUS-140329
...
19
BOLT SHD 5/16-18 HUS-132827
...
21
SUB= 73690500 HUS-73680500
...
23
BRKT DEFLECTOR HUS-137607
...
24
CAP-SLEEVE LT HUS-105304X
...
25
SPRING TORSION HUS-123713X
...
26
NUT PUSH M HUS-110452X
...
27
DEFLECTOR, SHIELD HUS-106736X428
...
28
WASHER HUS-19111016
...
29
ROD-HINGE T HUS-106735X
...
30
"SCREW-THD ROLL,WA" HUS-157722
...
31
WASHER HUS-129963
...
32
PULLEY.MANDREL.38 HUS-153532
...
33
SUB= 139729 HUS-137266
...
34
BOLT HUS-STD533717
...
36
FLAT IDLER PULLEY HUS-131494
...
40
SUB= 73690600 HUS-73680600
...
45
RETAINER M HUS-4497H
...
53
BRAKE ASM HUS-130840
...
54
HARDENED WASHER HUS-133943
...
55
IDLER ARM ASSY HUS-133840
...
56
SPACER.RETAINER.MOWER HUS-165723
...
67
KNOB T(3/8 HOLE) HUS-106932X
...
68
BELT.V.T-PATH HUS-144200
...
69
SUB= 3145 HUS-76020312
...
86
RUNNER-LH M HUS-7631J
...
87
RUNNER RH HUS-128772
...
88
WASHER M HUS-19111216
...
89
WASHER GT HUS-19131612
...
107
RETAINER SPACER HUS-133502
...
108
IDLER ARM STIFF HUS-133503
...
109
BOLT HUS-74760640
...
110
UPSTOP DECK FT 38 HUS-142587
...
113
SCREW HUS-17060512
...
122
BRAKE ROD LH HUS-131289
...
123
ROD HUS-169971
...
128
WASHER.FELT. HUS-153390
...
146
BOLT HUS-165891
...
148
SPRING RETURN IDLER HUS-169022
...
149
RETAINER SPRING HUS-165898
...
150
WASHER PM HUS-19091216
...
151
BRKT CLUTCH CABLE HUS-169670
...
152
CLUTCH CABLE HUS-172758
...
153
WASHER FLAT HUS-169674
...
154
SPRING RETAINER HUS-169675
...
155
SPRING RETENTION LVR CLUTCH CAB HUS-169671
...
156
SPACER HUS-169672
...
157
ROD.CLUTCH.CABLE.3/8 HUS-169669
...
158
SCREW LT HUS-17720410
...
xx
MANDREL ASM HUS-130794
...
xx
MOWER DECK, COMPLETE HUS-170317
