Husqvarna 257 (1998-03) Chain Saw

Model: 257 (1998-03)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

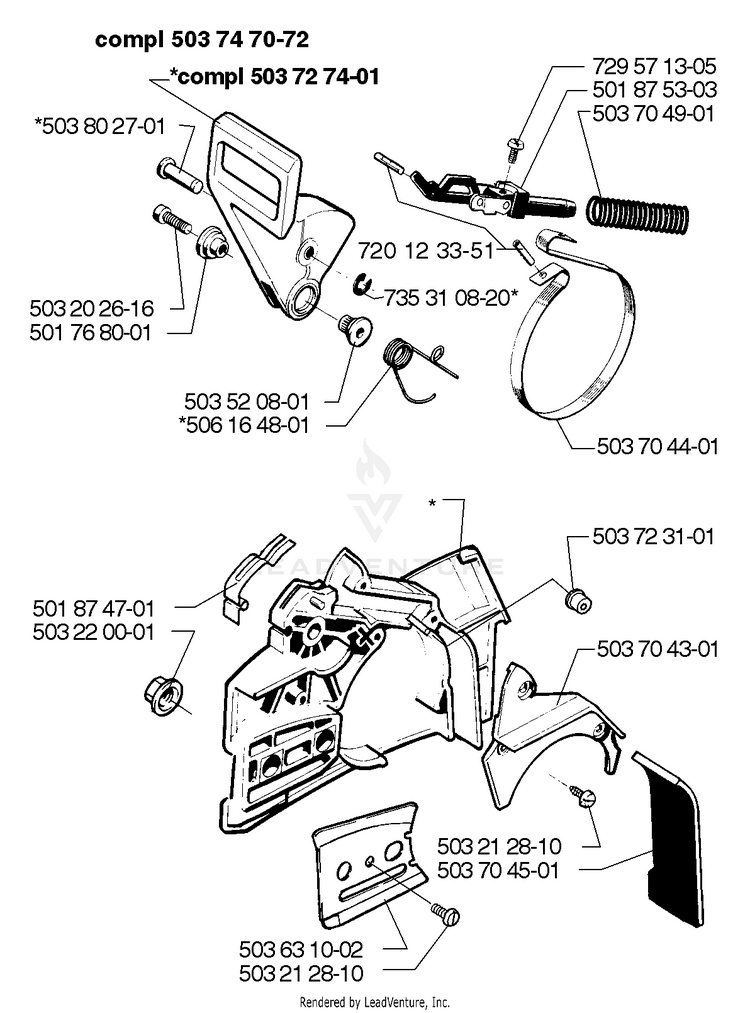

Chain Brake Assembly

...
...
503747072
CHAINBRAKE HUS-503747072
...
503727401
HANDGUARD HUS-503727401
...
503802701
PIVOT PIN HUS-503802701
...
503202616
SCREW HUS-503202616
...
501768001
PIVOT SLEEVE R HUS-501768001
...
503520801
PIVOT SLEEVE L HUS-503520801
...
506164801
SPRING HUS-506164801
...
501874701
SPRING HUS-501874701
...
503220001
NUT M8 FLANGE HUS-503220001
...
503631002
CHAIN GUIDE PLATE HUS-503631002
...
503212810
SCREW HUS-503212810
...
503212810
SCREW HUS-503212810
...
503704501
DUST GUARD HUS-503704501
...
503704301
CLUTCH COVER HUS-503704301
...
503723101
BUSHING HUS-503723101
...
503704401
BRAKE BAND HUS-503704401
...
720123351
HARDENED PIN HUS-720123351
...
735310820
E-RING 4 HUS-735310820
...
729571305
SCREW HUS-503212810
...
501875303
KNEE LINK HUS-501875303
...
503704901
BRAKE SPRING HUS-503704901
...
...
...
...
...
