Husqvarna 257 (1996-01) Chain Saw

Model: 257 (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

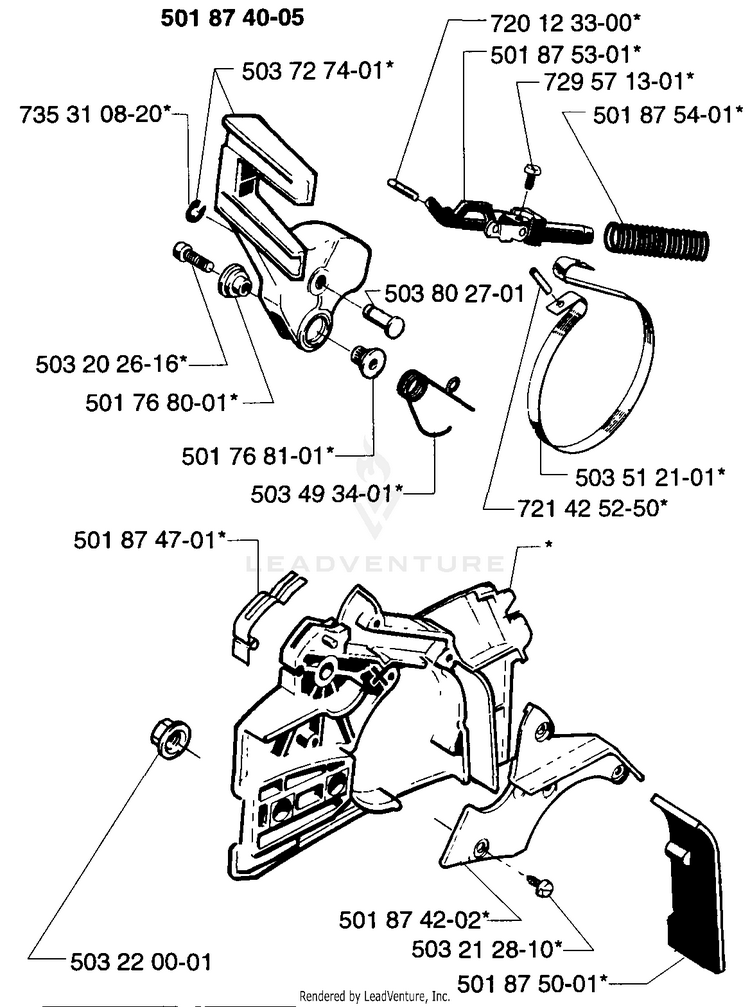

Chain Brake Assembly

...
...
503493401
LOCK SPRING HUS-503493401
...
501874701
SPRING HUS-501874701
...
503220001
NUT M8 FLANGE HUS-503220001
...
503212810
SCREW HUS-503212810
...
501874202
COVER HUS-501874202
...
721425250
SPIRAL PIN 4X12 HUS-721425250
...
501875001
DUST GUARD NLA HUS-501875001
...
503212101
SCREW CSS B8X10 HUS-503211103
...
503802701
PIVOT PIN HUS-503802701
...
501875401
SPRING HUS-501875401
...
729571301
SCREW HUS-503212810
...
501875301
KNEE-JOINT HUS-501875301
...
720123300
PIN 3X10 HUS-720123300
...
501874005
CHAINBRAKE HUS-503747072
...
503727401
HANDGUARD HUS-503727401
...
501768101
PIVOT SLEEVE L HUS-501768101
...
735310820
E-RING 4 HUS-735310820
...
503202616
SCREW HUS-503202616
...
501768001
PIVOT SLEEVE R HUS-501768001
