Husqvarna 257 (1996-01) Chain Saw

Model: 257 (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

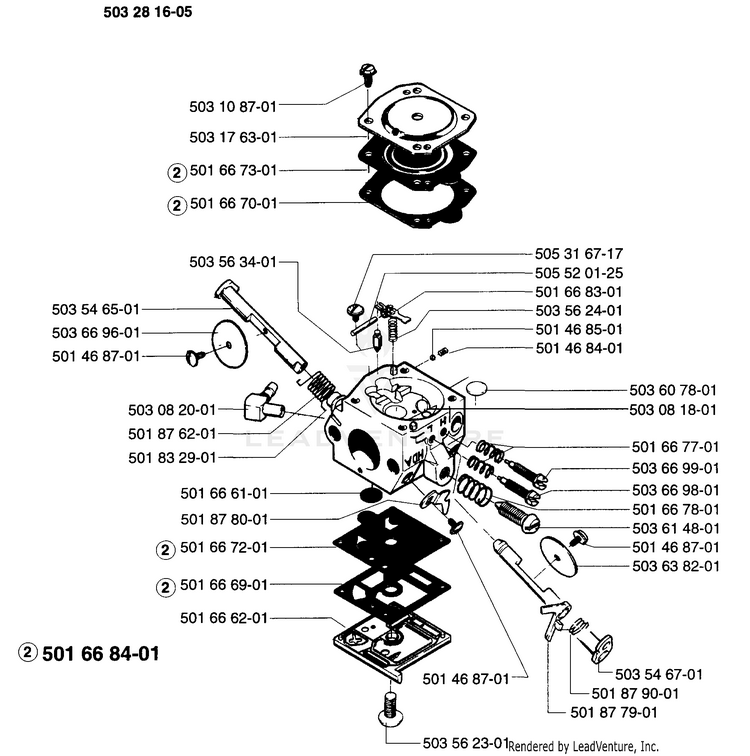

Carburetor Parts

...
...
503281605
CARB. HDA-144-1 WALBRO HUS-503281611
...
503108701
SCREW HUS-503584601
...
503176301
COVER METERING DIAPHR. HUS-503176301
...
501667301
METERING DIAPHRAGM HUS-501667301
...
501667001
GASKET, METERING SIDE HUS-501667001
...
503563401
INLET NEEDLE HUS-503563401
...
503546501
THROTTLESHAFT ASS'Y HUS-503546501
...
503669601
THROTTLE VALVE HUS-503669601
...
501468701
SCREW HUS-501468701
...
503082001
NIPPLE HUS-503082001
...
501876201
Throttle Return Spring HUS-501876201
...
501832901
BUSHING HUS-501832901
...
501666101
FUEL INLET SCREEN HUS-501666101
...
505316717
SCREW HUS-505316717
...
505520125
FULCRUM PIN HUS-505520125
...
501668301
LEVER HUS-501668301
...
503562401
SPRING HUS-503562401
...
501468501
BALL HUS-501468501
...
501468401
SPRING HUS-501468401
...
503607801
WELCH PLUG HUS-503574201
...
503081801
Washer HUS-503081801
...
501667701
SPRING HUS-501667701
...
503669901
HIGH SPEED NEEDLE HUS-503669901
...
503669801
HUS-503669801
...
501667801
IDLE SCREW SPRING HUS-530035121
...
503614801
IDLE SPEED SCREW HUS-503614801
...
501468701
SCREW HUS-501468701
...
503638201
CHOKE VALVE HUS-503638201
...
503546701
CHOKESHAFT ASS'Y HUS-503546701
...
501879001
SPRING CHOKE HUS-501879001
...
501877901
LEVER FAST IDLE HUS-501877901
...
503562301
Screw HUS-503562301
...
501468701
SCREW HUS-501468701
...
501878001
THROTTLE STOP HUS-501878001
...
501667201
PUMP DIAPHRAGM HUS-502254701
...
501666901
GASKET, PUMP SIDE HUS-501666901
...
501666201
COVER, PUMP SIDE HUS-501666201
...
501668401
REPAIR KIT DIAPHRAGM SET HUS-501668401
