Husqvarna 257 (1996-01) Chain Saw

Model: 257 (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

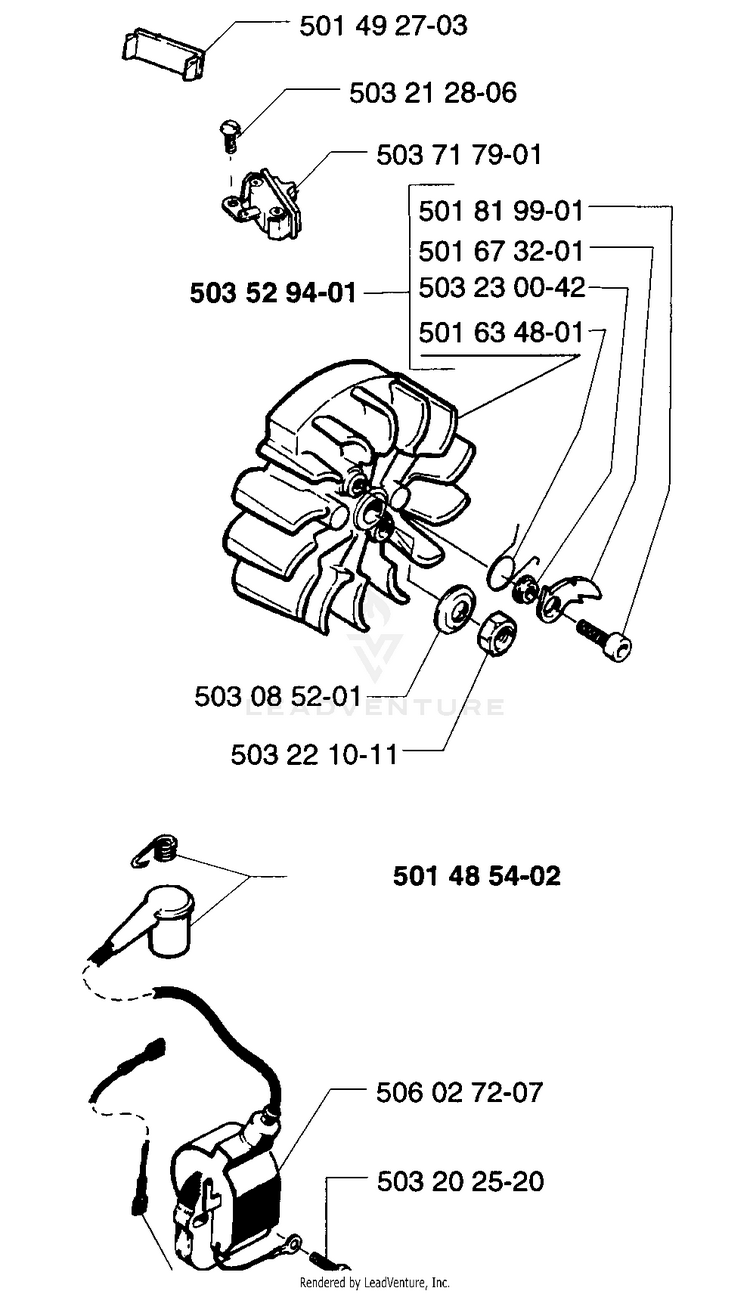

Ignition/Flywheel

...
...
501492703
COVER HUS-501492703
...
503212806
SCREW HUS-503212806
...
503717901
SWITCH ON/OFF HUS-503717901
...
501819901
SCREW M5X14 HUS-501819901
...
501673201
PAWL HUS-501673201
...
503230042
WASHER HUS-503230042
...
501634801
SPRING HUS-501634801
...
503085201
WASHER HUS-503085201
...
503221011
NUT M8X1 HUS-503221011
...
503529401
FLYWHEEL HUS-503529401
...
501485402
SPARK PLUG CONN. KIT HUS-501485402
...
506027207
IGNITION MODULE HAS3.1.3CCN100 HUS-587329503
...
503202520
SCREW HUS-503202520
Schematic Image Zoomed
